TRF371135IRGZT - Texas Instruments

Description: 1.7 - 6.0 GHz Wide Bandwidth Integrated Direct Down Conversion Receiver

Download TRF371135IRGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

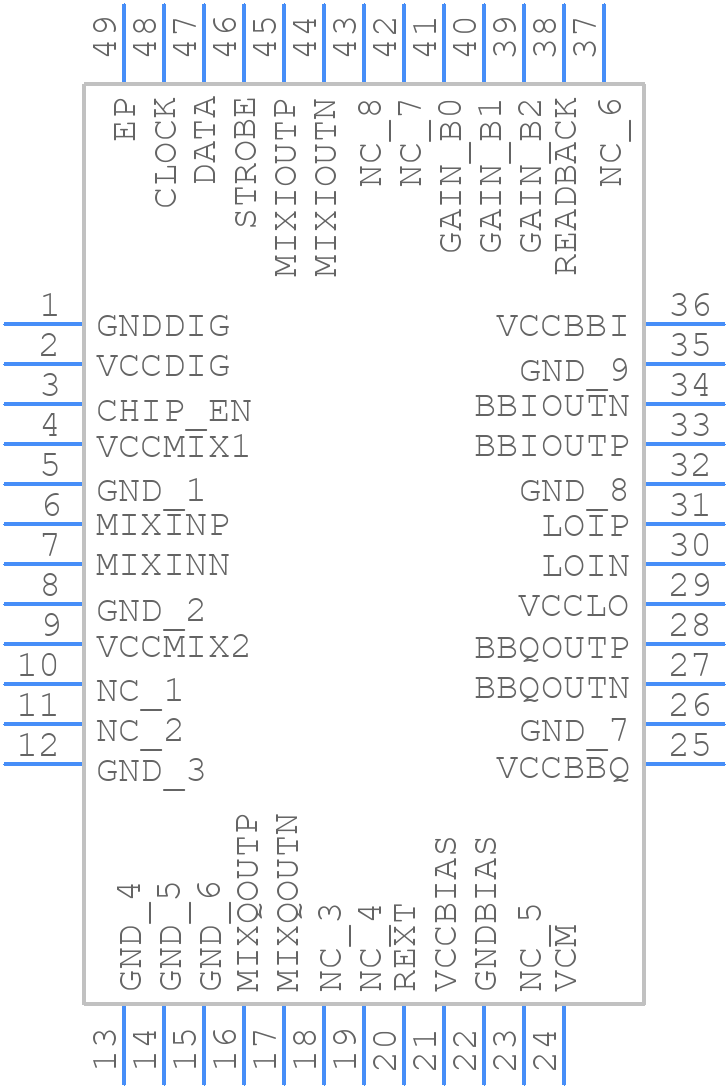

TRF371135IRGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF371135IRGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048D
click to zoom
3D Models
TRF371135IRGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048D
click to zoom

TRF371135IRGZT Details

  • Manufacturer Part Number:

    TRF371135IRGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TRF371135IRGZT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good RF design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance.
  • The TRF371135IRGZT requires impedance matching networks to achieve optimal performance. Use the datasheet's impedance matching charts and consider the specific application's requirements to choose the correct input and output impedance matching networks.
  • The TRF371135IRGZT can handle up to 2W of input power. However, it's essential to consider the device's thermal characteristics and ensure proper heat sinking to prevent overheating and damage.
  • The TRF371135IRGZT operates within the 1350-1450 MHz frequency range. Ensure that the input signal frequency falls within this range, and use filtering or tuning components to prevent out-of-band signals from affecting the device's performance.
  • The TRF371135IRGZT operates within a temperature range of -40°C to 85°C, and a supply voltage range of 4.75V to 5.25V. Ensure that the device operates within these conditions to ensure optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF371135IRGZT Overview

Use the download button to access the TRF371135IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37, or try a keyword search, such as Cellular Telephone Circuits
