TRF372017IRGZR - Texas Instruments

Description: Modulator / Demodulator 300MHz to 4.8GHz Quad Modulator

Download TRF372017IRGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

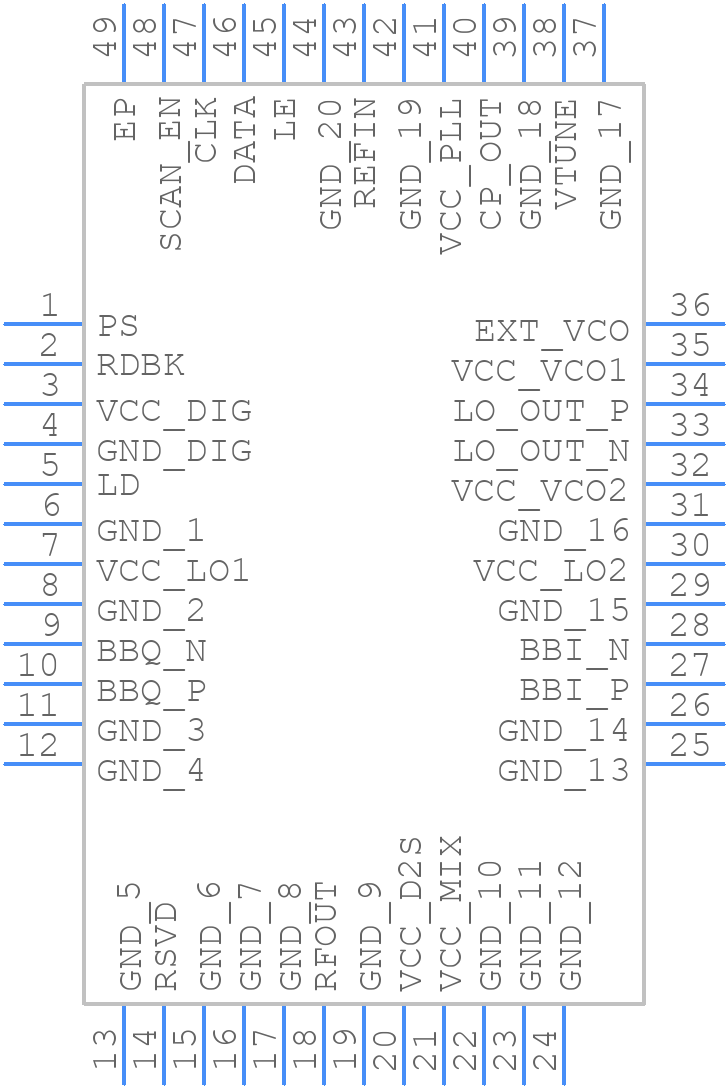

TRF372017IRGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF372017IRGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048D
click to zoom
3D Models
TRF372017IRGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048D
click to zoom

TRF372017IRGZR Details

  • Manufacturer Part Number:

    TRF372017IRGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.25 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TRF372017IRGZR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces short and away from the digital signal traces. Use a common mode filter or a pi-filter to reduce EMI.
  • Use the lowest possible supply voltage, disable the internal voltage regulator, and use the power-down mode when not transmitting. Also, optimize the transmit power and data rate according to your application's requirements.
  • The TRF372017IRGZR can operate from -40°C to 85°C. However, the device's performance may degrade at higher temperatures. Ensure proper thermal management and heat dissipation in your design.
  • Use a metal shield around the device, keep the RF signal traces short, and use a common mode filter or a pi-filter to reduce EMI. Ensure the PCB layout is optimized for minimal radiation and susceptibility.
  • A quarter-wavelength monopole antenna or a dipole antenna with a 50-ohm impedance is recommended. The antenna should be matched to the device's output impedance for optimal performance.
