TRF3722IRGZR - Texas Instruments

Description: Modulator/Demodulator Quadrature Modulator

Download TRF3722IRGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

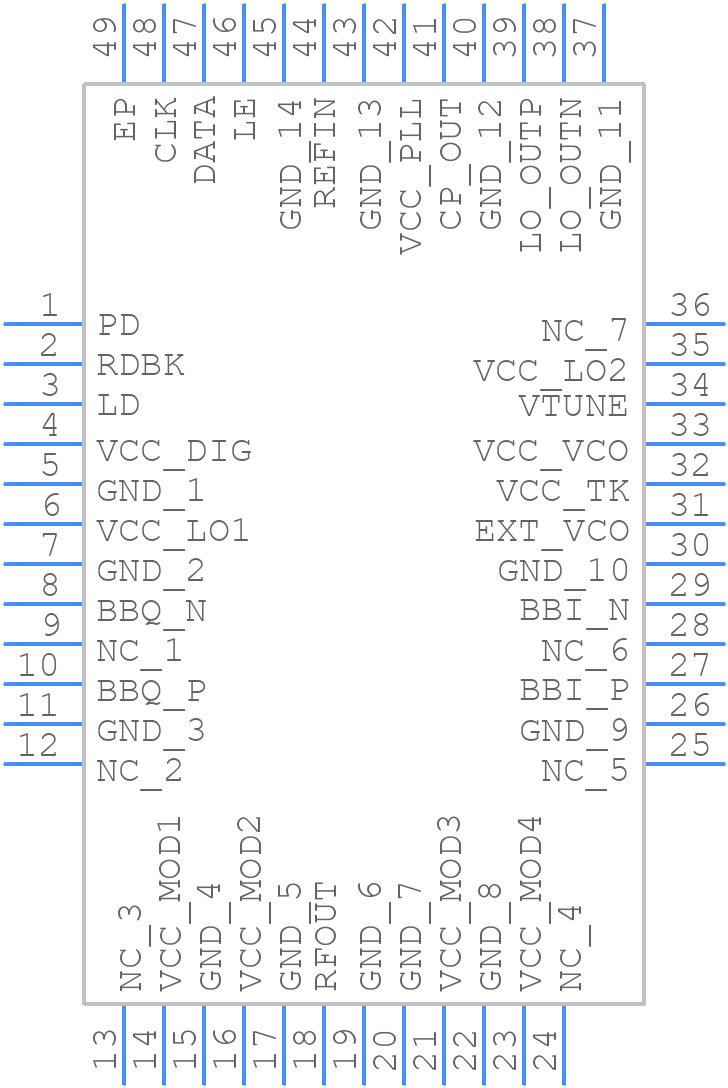

TRF3722IRGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF3722IRGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A
click to zoom
3D Models
TRF3722IRGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A
click to zoom

TRF3722IRGZR Details

  • Manufacturer Part Number:

    TRF3722IRGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e4

  • Modulation Technique:

    I/Q

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    48

  • Operating Frequency-Max:

    4200 MHz

  • Operating Frequency-Min:

    400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC48,.28SQ,20

  • RF/Microwave Device Type:

    MODULATOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    3.01

TRF3722IRGZR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces short and away from the digital signals. Use a common mode filter or a pi-filter to reduce EMI.
  • Use the TI's WEBENCH tool to optimize the component values for the desired frequency band. The tool provides a suggested component list and a PCB layout guide.
  • The maximum input power is +10 dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • Ensure the device is operated within the recommended supply voltage range (2.85V to 3.15V) and the temperature range (-40°C to 85°C). Also, ensure the input signal is within the recommended power range.
  • A 100nF decoupling capacitor is recommended, placed as close as possible to the device's power pins.
