CAN ALSO OPERATE WITH 5V SUPPLY, DUAL MODULUS PRESCALER : 8/9, 16/17, 32/33, 64/65
Analog IC - Other Type:
PLL FREQUENCY SYNTHESIZER
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TRF3750IPW Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TRF3750IPW evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The TRF3750IPW can be configured for different frequency bands by adjusting the values of the external components, such as the inductors and capacitors, and by programming the device's registers using the SPI interface. Texas Instruments provides a frequency planning tool to help with this process.
The TRF3750IPW is designed to handle a maximum output power of +20 dBm, but the actual power handling capability may vary depending on the specific application and operating conditions. It's recommended to consult with Texas Instruments' application engineers for specific guidance.
Impedance matching can be implemented using external components, such as resistors, inductors, and capacitors, to match the output impedance of the TRF3750IPW to the input impedance of the antenna or load. Texas Instruments provides guidelines and examples for impedance matching in the device's datasheet and application notes.
The latency of the TRF3750IPW's SPI interface is typically on the order of tens of nanoseconds, but the exact latency may vary depending on the specific operating conditions and system design. It's recommended to consult with Texas Instruments' application engineers for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRF3750IPW Overview

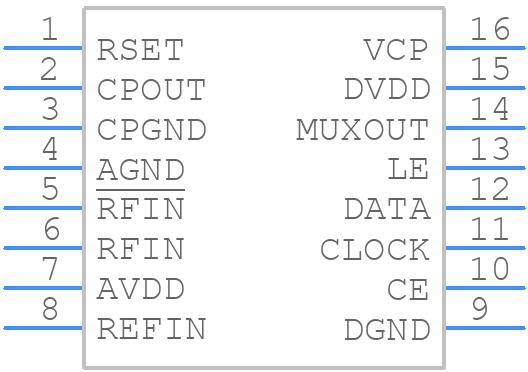

Use the download button to access the TRF3750IPW schematic symbol, PCB footprint, and 3D model.
