TRF3750IPWR - Texas Instruments

Description: Clock Synthesizer/Jitter Cleaner High Perf Integer-N PLL Freq Synth

Download TRF3750IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

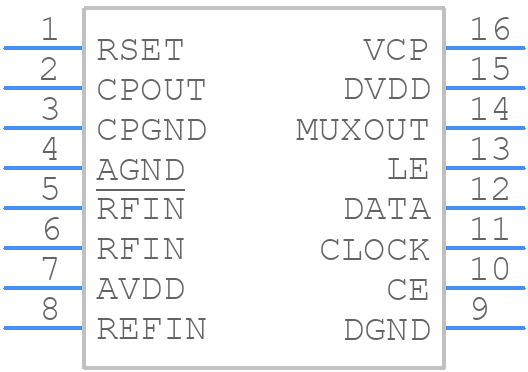

TRF3750IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF3750IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G16)
click to zoom
3D Models
TRF3750IPWR - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G16)
click to zoom

TRF3750IPWR Details

  • Manufacturer Part Number:

    TRF3750IPWR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    CAN ALSO OPERATE WITH 5V SUPPLY, DUAL MODULUS PRESCALER : 8/9, 16/17, 32/33, 64/65

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TRF3750IPWR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces as short as possible and away from the power plane. Use a common mode filter or a ferrite bead to reduce noise and EMI.
  • Optimize the output power by adjusting the input power, bias voltage, and load impedance. Ensure the device is operated within the recommended operating conditions and that the output is properly matched to the load.
  • The maximum operating temperature range for the TRF3750IPWR is -40°C to 85°C. However, the device's performance may degrade at higher temperatures, so it's essential to ensure proper thermal management.
  • To reduce the noise figure, ensure the device is operated at the recommended bias voltage and current. Use a low-noise power supply, and add noise-reducing components such as capacitors or resistors to the circuit. Optimize the PCB layout to minimize noise coupling.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is also 50 ohms. Ensure the input and output are properly matched to the device to achieve optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF3750IPWR Overview

Use the download button to access the TRF3750IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
