TRF3761-BIRHAT - Texas Instruments

Description: Low Noise Integer N PLL Frequency Synthesizer With Integrated VCO

Download TRF3761-BIRHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

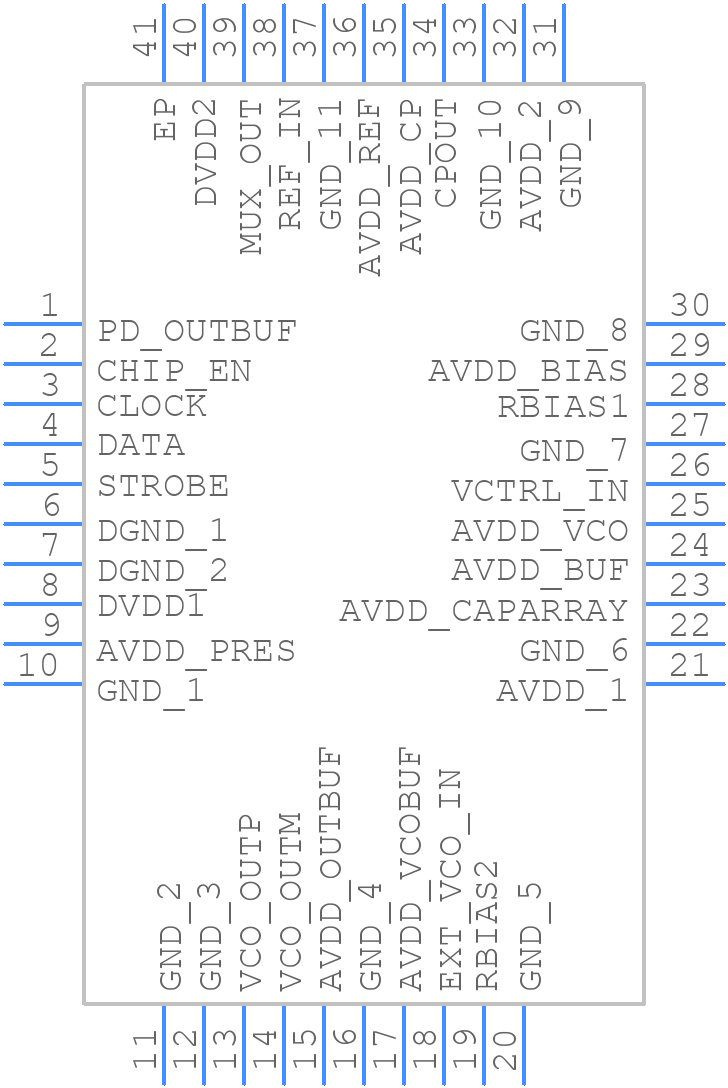

TRF3761-BIRHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF3761-BIRHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040H
click to zoom
3D Models
TRF3761-BIRHAT - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040H
click to zoom

TRF3761-BIRHAT Details

  • Manufacturer Part Number:

    TRF3761-BIRHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    DUAL MODULUS PRESCALER : 8/9, 16/17, 32/33, 64/65

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    1711 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TRF3761-BIRHAT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TRF3761 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The TRF3761 can be configured for different frequency bands by adjusting the values of the external components, such as the inductors and capacitors, and by programming the device's registers using the SPI interface. Texas Instruments provides a frequency planning tool to help with this process.
  • The TRF3761 is designed to handle a maximum input power of +20 dBm, but the actual power handling capability may vary depending on the specific application and operating conditions. It's recommended to consult with Texas Instruments' application engineers for specific guidance.
  • Texas Instruments provides a troubleshooting guide for the TRF3761, which includes steps for identifying and resolving common issues. Additionally, engineers can use tools such as oscilloscopes and spectrum analyzers to debug the device and identify the root cause of the problem.
  • Yes, the TRF3761 is designed to be compatible with other Texas Instruments devices, and can be easily integrated into a larger system. Texas Instruments provides reference designs and application notes to help with system-level design and integration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF3761-BIRHAT Overview

Use the download button to access the TRF3761-BIRHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
