Texas Instruments provides a recommended PCB layout in the TRF3761-FIRHAT evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The TRF3761-FIRHAT can be configured for different frequency bands by adjusting the values of the external components, such as the inductors and capacitors, and by programming the device's registers using the SPI interface. Refer to the device's datasheet and application notes for specific guidance.
The maximum input power that the TRF3761-FIRHAT can handle is +10 dBm. Exceeding this limit may result in reduced performance, increased noise, or even damage to the device.
To optimize the TRF3761-FIRHAT for low power consumption, use the device's power-down modes, adjust the bias current, and optimize the external component values. Additionally, consider using a low-power mode of operation, such as the 'Low Power Mode' or 'Shutdown Mode', when the device is not in use.
The typical settling time of the TRF3761-FIRHAT's PLL is around 100 μs to 200 μs, depending on the frequency band and the specific application. However, this value can be affected by various factors, such as the quality of the reference clock and the PLL loop filter design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRF3761-FIRHAT Overview

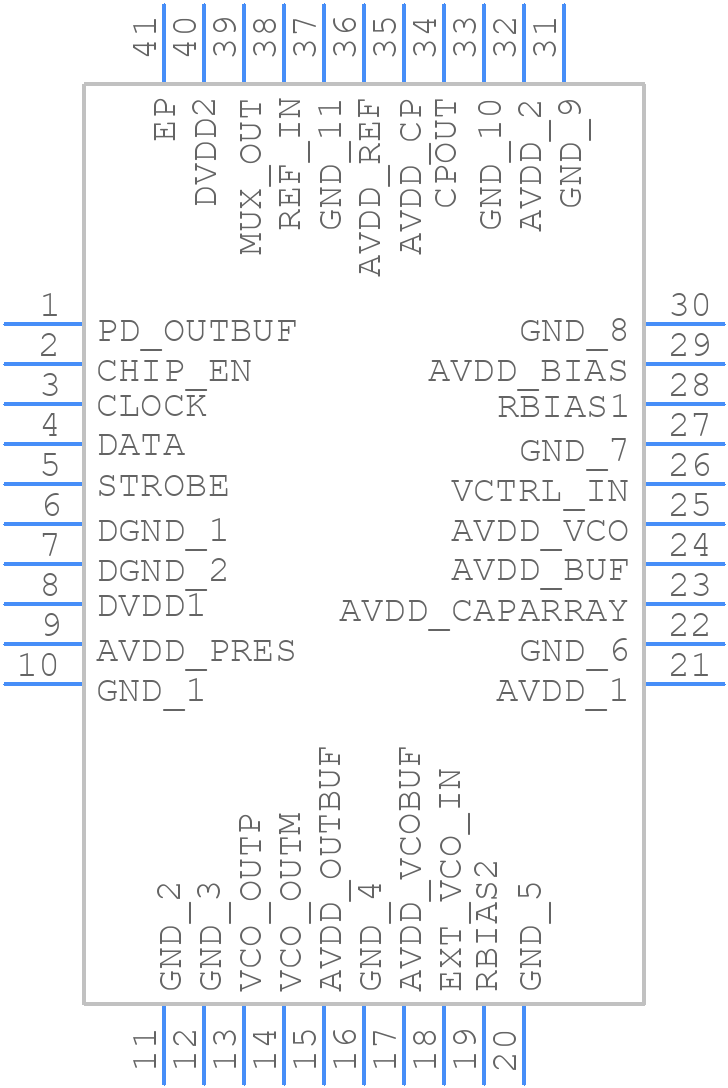

Use the download button to access the TRF3761-FIRHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
