Texas Instruments provides a recommended PCB layout in the TRF3761 evaluation module documentation, which includes guidelines for component placement, trace routing, and grounding. Following this layout can help minimize noise and ensure optimal performance.
The TRF3761 can be configured for different frequency bands by adjusting the values of the external components, such as the inductors and capacitors, and by programming the device's registers. The datasheet provides a table with recommended component values for different frequency bands, and the device's programming guide explains how to configure the registers.
The TRF3761 can handle input powers up to +10 dBm, but the maximum input power depends on the specific application and the device's configuration. It's recommended to consult the datasheet and the device's thermal design guide to ensure that the device operates within its thermal limits.
Impedance matching is critical for optimal performance. Texas Instruments provides a impedance matching guide for the TRF3761, which includes a step-by-step process for calculating and implementing the optimal impedance matching network. The guide also provides examples of impedance matching circuits for different frequency bands.
The TRF3761 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to follow the thermal design guidelines provided in the datasheet and the device's thermal design guide. This includes selecting a suitable heat sink, using thermal vias, and optimizing the PCB layout for heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRF3761-GIRHAT Overview

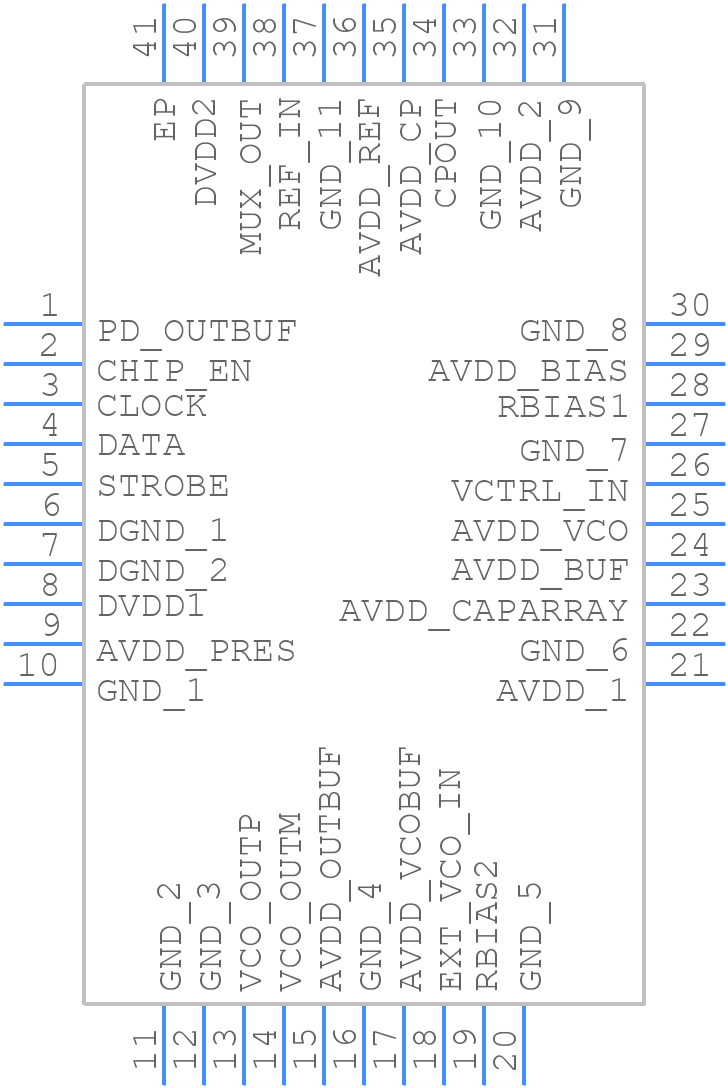

Use the download button to access the TRF3761-GIRHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
