TRF3761-JIRHAT - Texas Instruments

Description: Low Noise Integer N PLL Frequency Synthesizer With Integrated VCO

Download TRF3761-JIRHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

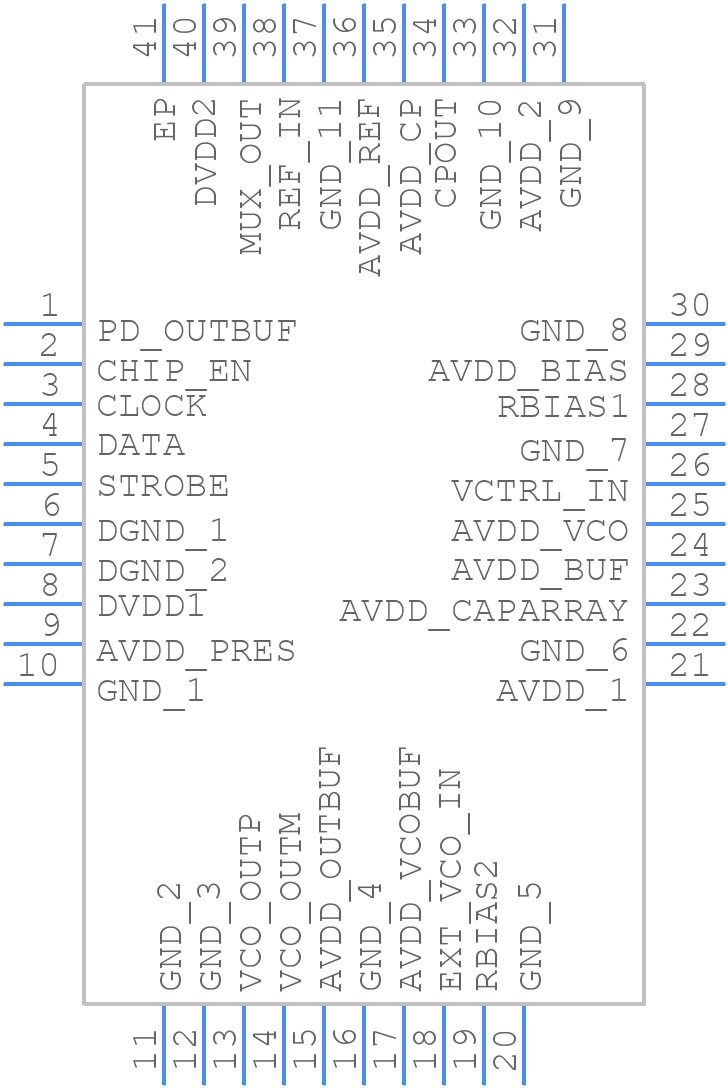

TRF3761-JIRHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF3761-JIRHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040H
click to zoom
3D Models
TRF3761-JIRHAT - Texas Instruments - 3D model - Quad Flat No-Lead - RHA0040H
click to zoom

TRF3761-JIRHAT Details

  • Manufacturer Part Number:

    TRF3761-JIRHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    DUAL MODULUS PRESCALER : 8/9, 16/17, 32/33, 64/65

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    2295 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

TRF3761-JIRHAT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TRF3761 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The TRF3761-JIRHAT is a highly configurable device, and frequency band selection is done through the SPI interface. Refer to the device's programming guide and register maps to configure the device for specific frequency bands.
  • The TRF3761-JIRHAT can handle input powers up to +10 dBm, but it's recommended to operate within the specified input power range of -10 dBm to +5 dBm for optimal performance and to prevent damage to the device.
  • Impedance matching is critical for optimal performance. Texas Instruments provides guidelines for impedance matching in the device's datasheet and application notes. Additionally, simulation tools like TI's RF Impedance Matching Tool can be used to design and optimize impedance matching networks.
  • The TRF3761-JIRHAT is a high-power device and requires proper thermal management to prevent overheating. Ensure good airflow, use thermal vias, and consider heat sinks or thermal pads to maintain a junction temperature below 125°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF3761-JIRHAT Overview

Use the download button to access the TRF3761-JIRHAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
