TRF3765IRHBT - Texas Instruments

Description: 300M-4800MHz Low Noise Integer-N/Fractional-N PLL with Integrated VCO and up to 8 Outputs

Download TRF3765IRHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

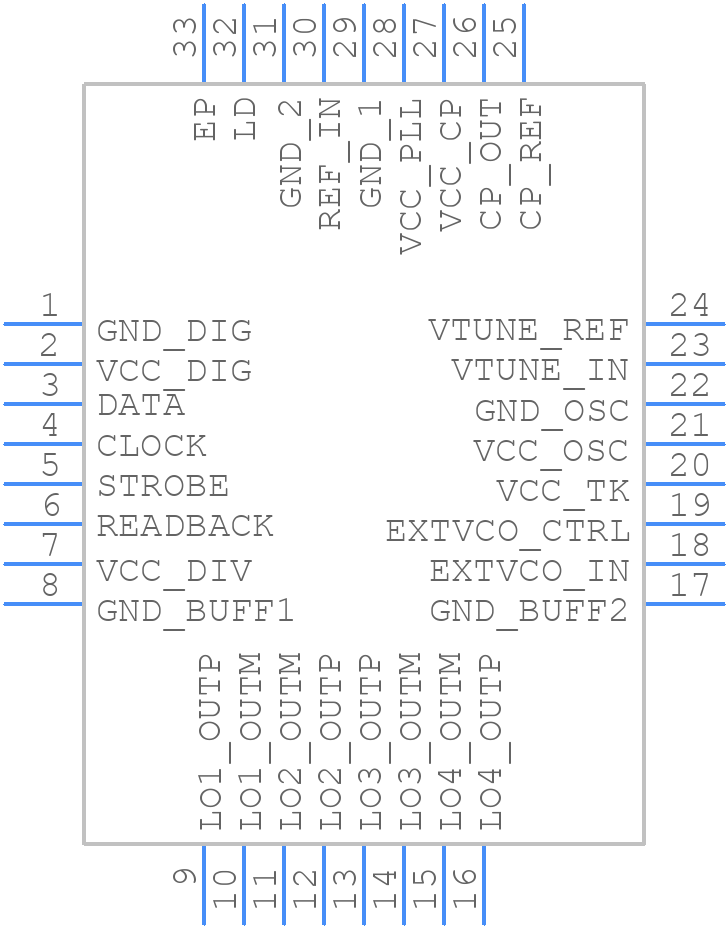

TRF3765IRHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF3765IRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - qfn-32---
click to zoom
3D Models
TRF3765IRHBT - Texas Instruments - 3D model - Quad Flat No-Lead - qfn-32---
click to zoom

TRF3765IRHBT Details

  • Manufacturer Part Number:

    TRF3765IRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    4800 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TRF3765IRHBT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces short and away from the digital signals. Use a common mode filter or a pi-filter to reduce EMI.
  • Use the lowest possible supply voltage, disable the internal voltage regulator, and use the power-down mode when not transmitting. Also, optimize the transmit power and data rate to minimize power consumption.
  • The maximum transmit power is dependent on the antenna impedance and the supply voltage. Typically, the maximum transmit power is around 20 dBm (100 mW) with a 50-ohm antenna impedance and a 3.3V supply voltage.
  • Use a robust modulation scheme such as GFSK or MSK, and implement error correction mechanisms such as CRC and retransmission. Also, ensure that the transmitter and receiver are properly synchronized.
  • A quarter-wave monopole antenna or a dipole antenna with a 50-ohm impedance is recommended. The antenna should be designed to operate at the desired frequency band and should be matched to the TRF3765IRHBT's output impedance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF3765IRHBT Overview

Use the download button to access the TRF3765IRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37, or try a keyword search, such as PLL or Frequency Synthesis Circuits
