Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good RF design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane and to place the device near the edge of the board to minimize radiation.
To optimize output power and efficiency, ensure that the input impedance is matched to the device's input impedance (typically 50 ohms). Use a conjugate match at the output to maximize power transfer. Additionally, optimize the biasing conditions, such as the voltage and current, to achieve the highest efficiency. TI provides a Power Amplifier Design Tool to help with this process.
The maximum operating temperature for the TRF37A75IDSGT is 150°C (junction temperature). However, it's recommended to operate the device at a lower temperature (typically below 125°C) to ensure reliability and minimize thermal degradation.
Proper thermal management is crucial for the TRF37A75IDSGT. Use a heat sink with a thermal conductivity of at least 1 W/m-K and ensure good thermal contact between the device and the heat sink. Additionally, consider using thermal vias and thermal pads on the PCB to dissipate heat efficiently.
The recommended input and output matching network depends on the specific application and frequency range. However, a general guideline is to use a low-pass filter at the input and a band-pass filter at the output. TI provides a reference design and application notes that can help with the matching network design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRF37A75IDSGT Overview

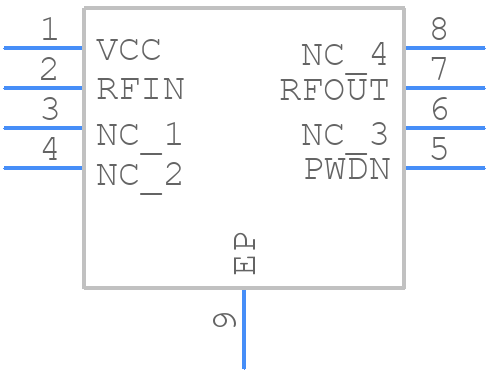

Use the download button to access the TRF37A75IDSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37,
or try a keyword search, such as RF/Microwave Amplifiers
