TRF37B73IDSGT - Texas Instruments

Description: 1 to 6000 MHz 15dB RF Gain Block Amplifier with Powerdown Pin

Download TRF37B73IDSGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

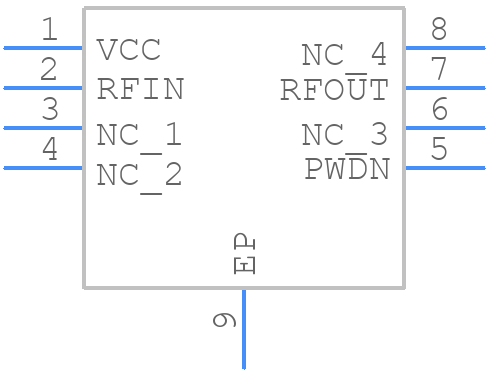

Symbol
TRF37B73IDSGT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF37B73IDSGT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A _ 2021
click to zoom
3D Models
TRF37B73IDSGT - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A _ 2021
click to zoom

TRF37B73IDSGT Details

  • Manufacturer Part Number:

    TRF37B73IDSGT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TRF37B73IDSGT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors to ensure optimal performance.
  • The choice of input and output capacitors depends on the specific application and operating conditions. TI recommends using low-ESR capacitors with a voltage rating that exceeds the maximum input voltage. A good starting point is to use 10uF to 22uF capacitors with a voltage rating of 25V or higher.
  • The TRF37B73IDSGT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • To ensure EMC, follow good design practices such as using a shielded enclosure, minimizing loop areas, and using filtering components like ferrite beads and capacitors. Additionally, ensure that the TRF37B73IDSGT is properly decoupled and that the PCB layout is optimized for minimal radiation.
  • The recommended input voltage range for the TRF37B73IDSGT is 2.7V to 5.5V, but it's essential to ensure that the input voltage does not exceed the maximum rating of 5.5V to prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF37B73IDSGT Overview

Use the download button to access the TRF37B73IDSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37, or try a keyword search, such as Other Telecom ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
