Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good RF design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance.
The TRF37C73IDSGR has a default input/output impedance of 50 ohms. However, you may need to adjust this impedance to match your specific application. Consult the datasheet and application notes for guidance on impedance matching and use tools like the TI Impedance Calculator to determine the optimal impedance for your design.
The TRF37C73IDSGR can handle up to 30 dBm (1W) of input power. However, it's essential to consider the device's thermal characteristics and ensure proper heat sinking to prevent overheating and damage.
The TRF37C73IDSGR requires a bias voltage of 3.3V to 5V. Ensure that the bias voltage is stable and within the recommended range. Additionally, follow the datasheet's guidelines for bias current and impedance to ensure optimal performance.
The TRF37C73IDSGR is a general-purpose, low-noise amplifier suitable for various RF and microwave applications, including wireless infrastructure, satellite communications, and radar systems. It can also be used in test and measurement equipment, such as signal generators and spectrum analyzers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRF37C73IDSGR Overview

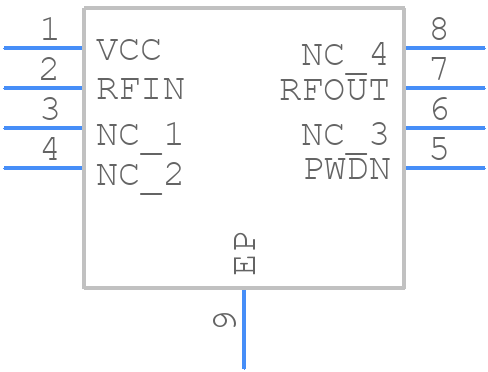

Use the download button to access the TRF37C73IDSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37,
or try a keyword search, such as RF/Microwave Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
