TRF37C75IDSGR - Texas Instruments

Description: 40 to 4000 MHz 18dB RF Gain Block Amplifier with Powerdown Pin

Download TRF37C75IDSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

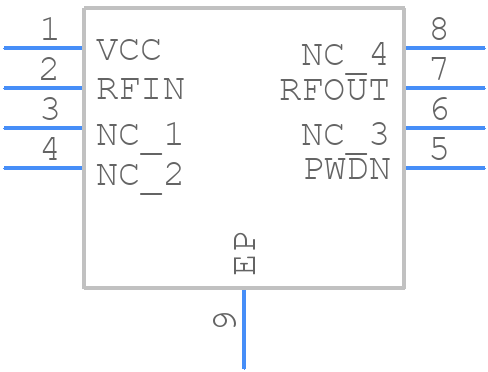

TRF37C75IDSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF37C75IDSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A-
click to zoom
3D Models
TRF37C75IDSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A-
click to zoom

TRF37C75IDSGR Details

  • Manufacturer Part Number:

    TRF37C75IDSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    40 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    85 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

TRF37C75IDSGR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines.
  • The TRF37C75IDSGR requires a bias voltage of 3.3V to 5V, and the recommended bias current is 10mA to 20mA. Ensure that the bias voltage is stable and noise-free, and that the bias current is within the recommended range.
  • The TRF37C75IDSGR has an operating temperature range of -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and longevity.
  • Common issues with the TRF37C75IDSGR can be troubleshooted by checking the PCB layout, bias voltage and current, and input/output matching. Use a spectrum analyzer or oscilloscope to measure the device's performance and identify the source of the issue.
  • While the TRF37C75IDSGR is designed for 50-ohm systems, it can be used in non-50-ohm systems with proper impedance matching. However, this may require additional components and careful design to ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF37C75IDSGR Overview

Use the download button to access the TRF37C75IDSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37, or try a keyword search, such as RF/Microwave Amplifiers
