TRF37D73IDSGT - Texas Instruments

Description: 1 to 6000 MHz 20dB RF Gain Block Amplifier with Powerdown Pin

Download TRF37D73IDSGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

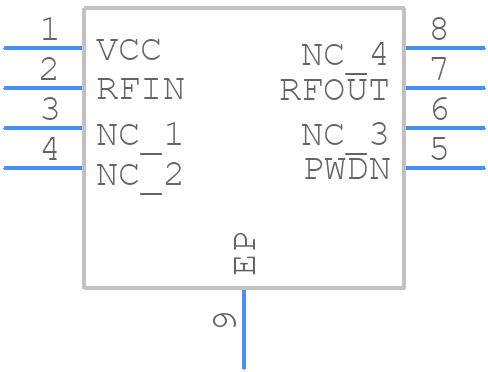

TRF37D73IDSGT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF37D73IDSGT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A_a
click to zoom
3D Models
TRF37D73IDSGT - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A_a
click to zoom

TRF37D73IDSGT Details

  • Manufacturer Part Number:

    TRF37D73IDSGT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    20 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    65 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

TRF37D73IDSGT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • Ensure that the output capacitor is properly sized and placed close to the output pin. Also, add a 10nF-100nF capacitor between the VIN and GND pins to filter out noise.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • Use a high-precision voltage reference, such as the TLV7031, and ensure that the output voltage is measured directly at the output pin to minimize errors.
  • A 10uF-22uF ceramic capacitor (X5R or X7R dielectric) is recommended for input decoupling. Place it as close to the VIN pin as possible.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF37D73IDSGT Overview

Use the download button to access the TRF37D73IDSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37, or try a keyword search, such as RF/Microwave Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
