TRF6900APTG4 - Texas Instruments

Description: RF Transceiver Sgl-Chip RF Transmitter

Download TRF6900APTG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

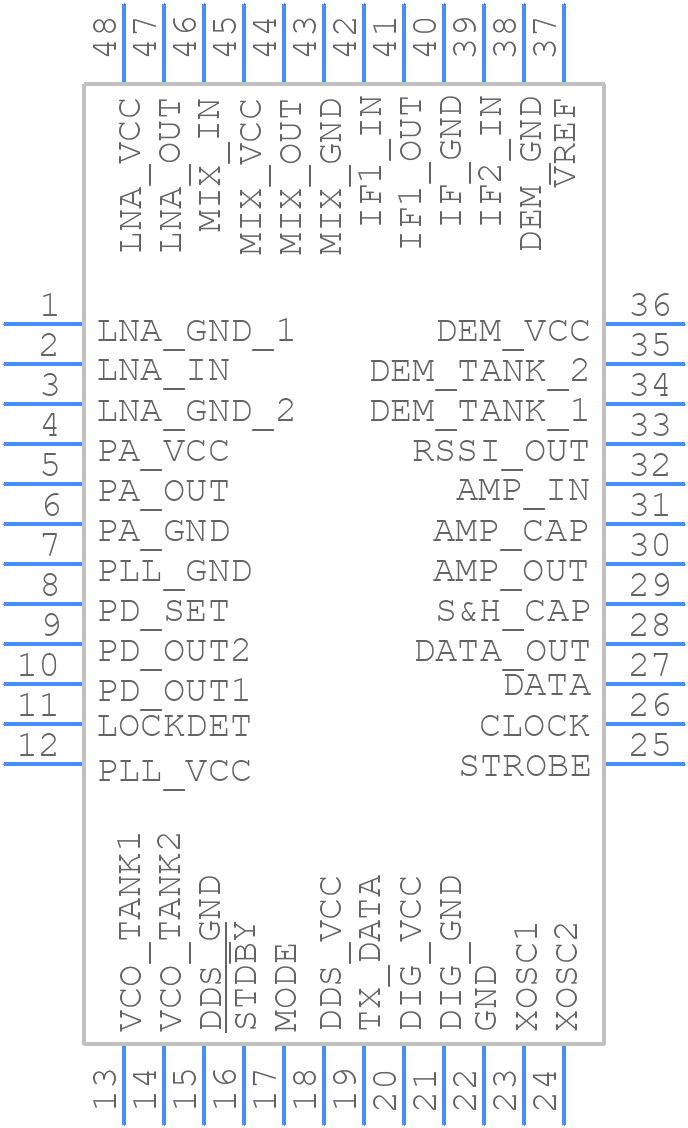

TRF6900APTG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF6900APTG4 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PT (S-PQFP-G48
click to zoom
3D Models
TRF6900APTG4 - Texas Instruments - 3D model - Quad Flat Packages - PT (S-PQFP-G48
click to zoom

TRF6900APTG4 Details

  • Manufacturer Part Number:

    TRF6900APTG4

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    GREEN, PLASTIC, LQFP-48

  • Pin Count:

    48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TRF6900APTG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TRF6900APTG4 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The TRF6900APTG4 can be configured for different frequency bands using the SPI interface to program the device's registers. The specific configuration depends on the desired frequency band and application, and can be found in the device's programming guide.
  • The TRF6900APTG4 can handle up to 30 dBm of output power, but the actual power handling capability depends on the specific application, PCB layout, and thermal management. It's essential to follow the recommended design guidelines and thermal management techniques to ensure reliable operation.
  • Impedance matching is critical for optimal performance. Texas Instruments provides guidelines for impedance matching in the device's datasheet and application notes. Engineers can use simulation tools like ADS or AWR to design and optimize the matching network.
  • Thermal management is crucial for the TRF6900APTG4, as high temperatures can affect performance and reliability. Key considerations include using a heat sink, thermal vias, and thermal pads, as well as ensuring good airflow and avoiding thermal hotspots.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF6900APTG4 Overview

Use the download button to access the TRF6900APTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF69, or try a keyword search, such as Cellular Telephone Circuits
