TRF6901PTR - Texas Instruments

Description: RF Transceiver FSK/OOK 2.5V/3.3V 48-Pin LQFP T/R

Download TRF6901PTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

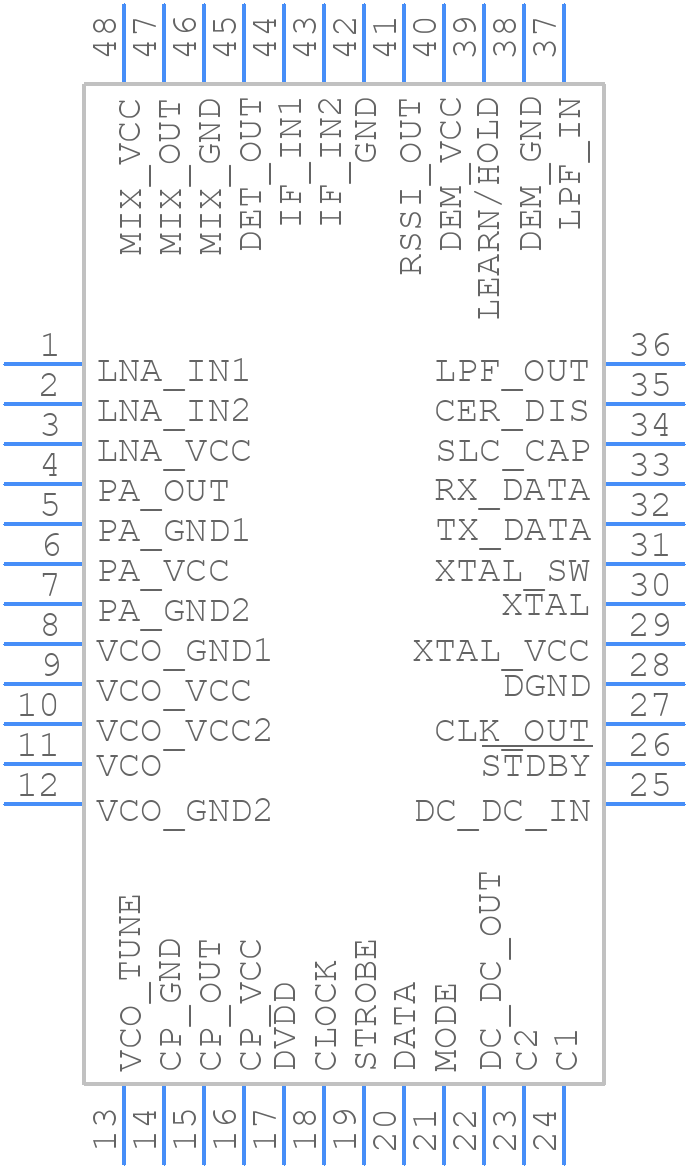

TRF6901PTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF6901PTR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PT (S-PQFP-G48
click to zoom
3D Models
TRF6901PTR - Texas Instruments - 3D model - Quad Flat Packages - PT (S-PQFP-G48
click to zoom

TRF6901PTR Details

  • Manufacturer Part Number:

    TRF6901PTR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    GREEN, PLASTIC, LQFP-48

  • Pin Count:

    48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    0.04 mA

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TRF6901PTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces short and away from the digital signals. Use a common mode filter or a pi-filter to reduce EMI.
  • Use the lowest possible supply voltage (1.8V), reduce the transmit power, and use the built-in power-saving features like the low-power mode and the automatic power control (APC).
  • The maximum data rate is 2 Mbps, but it depends on the modulation scheme, frequency, and transmission mode used. For example, in OOK mode, the maximum data rate is around 1 Mbps.
  • Use the built-in frequency synthesizer and the PLL calibration feature to implement frequency hopping. The device supports up to 16 frequency channels, and the frequency hopping sequence can be programmed using the SPI interface.
  • The range of the TRF6901PTR depends on the transmission power, antenna design, and environment. To improve the range, use a high-gain antenna, optimize the transmission power, and reduce interference from other devices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF6901PTR Overview

Use the download button to access the TRF6901PTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF69, or try a keyword search, such as Cellular Telephone Circuits
