TRF6903PT - Texas Instruments

Description: RF Transceiver SINGLE-CHIP RF TRANSCEIVER

Download TRF6903PT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

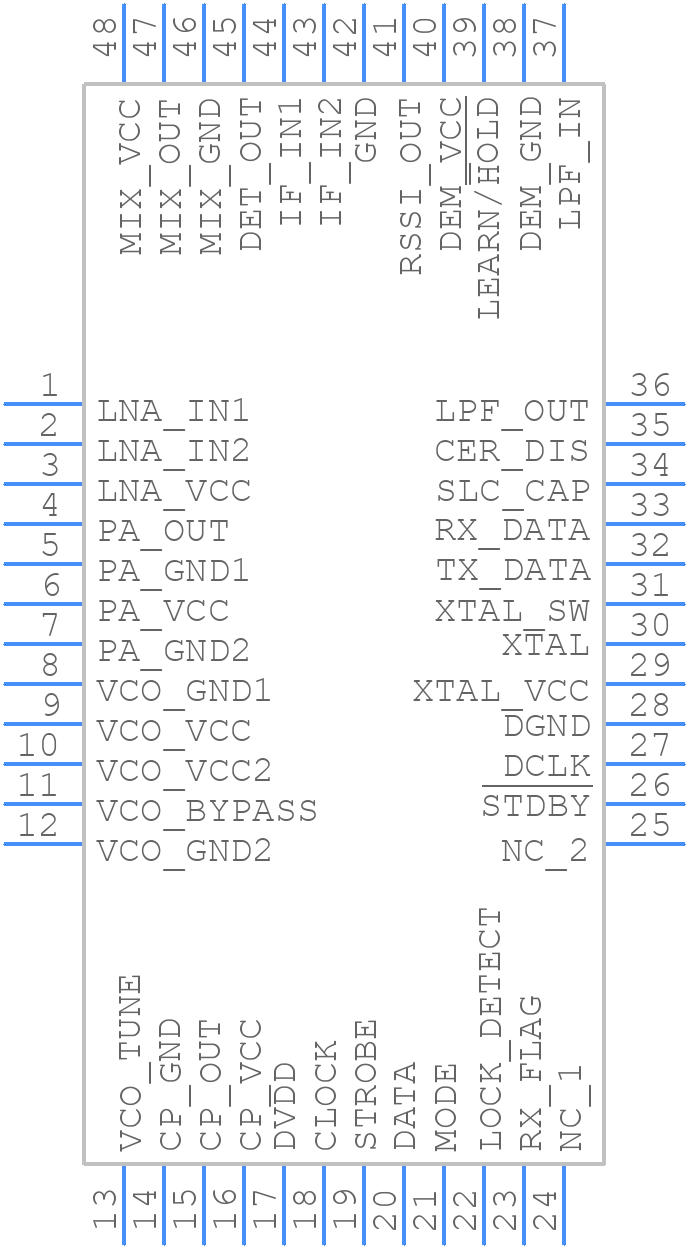

TRF6903PT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF6903PT - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PT (S-PQFP-G48
click to zoom
3D Models
TRF6903PT - Texas Instruments - 3D model - Quad Flat Packages - PT (S-PQFP-G48
click to zoom

TRF6903PT Details

  • Manufacturer Part Number:

    TRF6903PT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    GREEN, PLASTIC, LQFP-48

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TRF6903PT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TRF6903PT evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The TRF6903PT can be configured for different frequency bands by adjusting the values of the external components, such as the inductors and capacitors, and by programming the device's registers using the SPI interface. Texas Instruments provides a frequency planning tool to help with this process.
  • The TRF6903PT is designed to handle a maximum output power of +20 dBm (100 mW) at the antenna port, but the actual power handling capability may vary depending on the specific application and operating conditions.
  • Impedance matching for the TRF6903PT can be implemented using external components, such as inductors and capacitors, to match the device's output impedance to the antenna impedance. Texas Instruments provides guidelines and examples for impedance matching in the device's datasheet and application notes.
  • The latency of the TRF6903PT is typically in the range of 1-2 microseconds, depending on the specific operating mode and configuration. This latency may affect system performance in applications that require low latency, such as real-time systems or high-speed data transmission.
