Texas Instruments provides a recommended PCB layout in the TRF6903PTR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The TRF6903PTR can be configured for different frequency bands by adjusting the values of the external components, such as the inductors and capacitors, according to the application notes and design guides provided by Texas Instruments.
The maximum power handling capability of the TRF6903PTR is dependent on the specific application and operating conditions. However, according to the datasheet, the device can handle up to 30 dBm of output power. It is recommended to consult with Texas Instruments' application engineers for specific guidance on power handling and thermal management.
Impedance matching for the TRF6903PTR can be implemented using external components, such as resistors, inductors, and capacitors, to match the output impedance of the device to the load impedance. Texas Instruments provides guidelines and design tools to help with impedance matching in the application notes and design guides.
The TRF6903PTR is a high-power device that requires proper thermal management to ensure reliable operation. Texas Instruments recommends using a heat sink and thermal interface material to dissipate heat, and provides guidance on thermal management in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRF6903PTR Overview

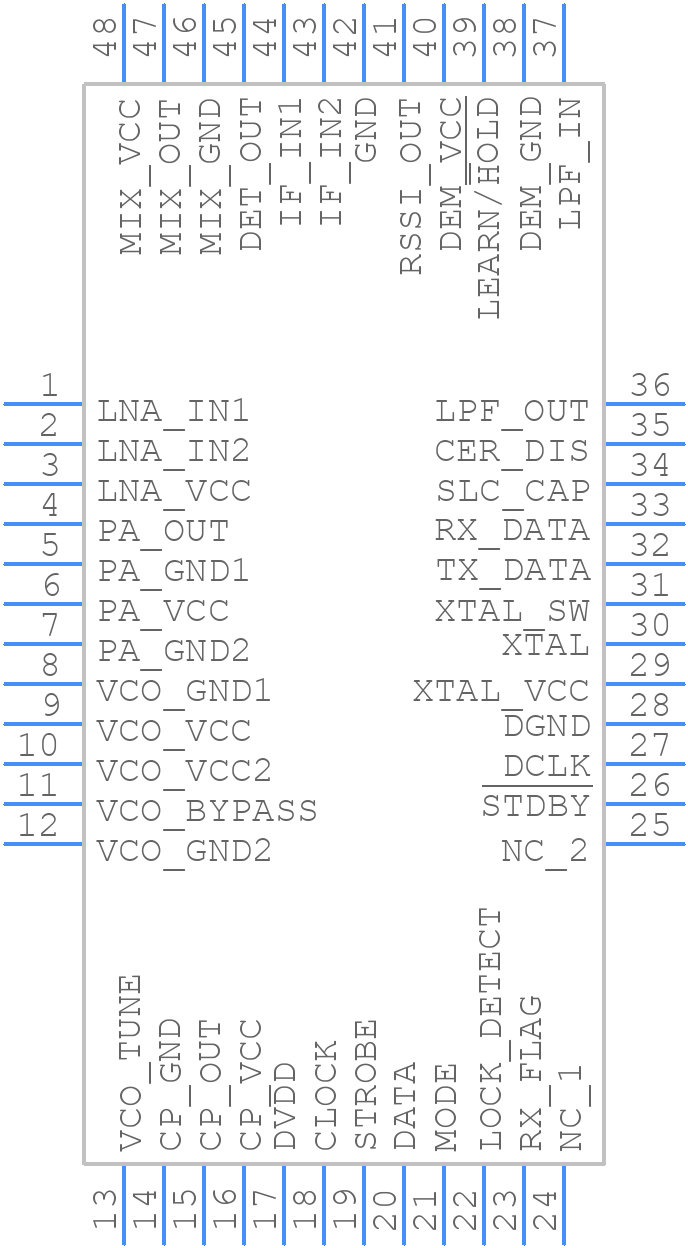

Use the download button to access the TRF6903PTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF69,
or try a keyword search, such as Cellular Telephone Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
