TRJC226M016RRJ - Kyocera AVX

Description: Tantalum Capacitors - Solid SMD 22UF/16V 20%ESR700 6032-28

Download TRJC226M016RRJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TRJC226M016RRJ - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

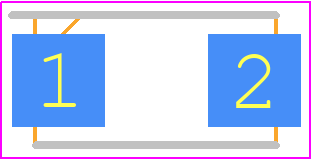

TRJC226M016RRJ - Kyocera AVX PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - CASE C_2
click to zoom
3D Models
TRJC226M016RRJ - Kyocera AVX - 3D model - Capacitor Moulded Polarised - CASE C_2
click to zoom

TRJC226M016RRJ Details

  • Manufacturer Part Number:

    TRJC226M016RRJ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Czechia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    6.7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    22 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    700 mΩ

  • Height:

    2.6 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0026 mA

  • Length:

    6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, PLASTIC, 7 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    159 mA

  • Size Code:

    2312

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    3.2 mm

TRJC226M016RRJ Frequently Asked Questions (FAQs)

  • The recommended land pattern for TRJC226M016RRJ can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
  • Yes, TRJC226M016RRJ is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and soldering techniques to ensure the component's reliability. Additionally, it's recommended to perform vibration testing to ensure the component meets the specific requirements of your application.
  • The maximum operating temperature range for TRJC226M016RRJ is -55°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. It's recommended to consult the datasheet and application notes for more information on temperature-related specifications.
  • Yes, TRJC226M016RRJ is compatible with lead-free soldering processes. Kyocera AVX Components ensures that their components meet the requirements of the RoHS (Restriction of Hazardous Substances) directive, which includes the use of lead-free materials.
  • The typical ESL of TRJC226M016RRJ is around 0.5nH to 1.5nH, depending on the frequency and operating conditions. However, it's recommended to consult the datasheet and application notes for more information on ESL and other parasitic parameters.
