TRS1.33-1T-75+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers RF XFMR / SURF MOUNT / RoHS

Download TRS1.33-1T-75+ Model

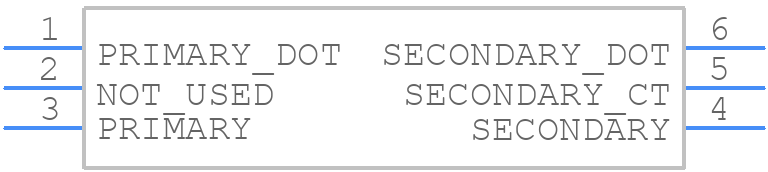

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TRS1.33-1T-75+ - Mini-Circuits PCB footprint - Other - Other - AT577
click to zoom
3D Models
TRS1.33-1T-75+ - Mini-Circuits  - 3D model - Other - AT577
click to zoom

TRS1.33-1T-75+ Details

  • Manufacturer Part Number:

    TRS1.33-1T-75+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    HEIGHT DIM INCLUDE TERMINAL ALSO

  • Application:

    MATCHING

  • Cut-off Frequency-Min:

    1 MHz

  • DC Unbalance Current-Max:

    300 mA

  • Height:

    3.81 mm

  • Insertion Loss:

    1.2 dB

  • Length:

    5.08 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    400000 kHz

  • Operating Frequency-Min:

    1000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Power Rating:

    0.75 W

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    5.08 mm

TRS1.33-1T-75+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TRS1-33-1T-75+ is -40°C to +85°C, as stated in the datasheet. However, it's essential to note that the device's performance may degrade beyond the specified temperature range.
  • While the TRS1-33-1T-75+ is not hermetically sealed, it is designed to operate in a relatively humid environment. However, prolonged exposure to high humidity (above 80%) may affect its performance and reliability. It's recommended to use proper humidity protection measures, such as conformal coating, to ensure optimal performance.
  • The recommended PCB layout and thickness for the TRS1-33-1T-75+ are not explicitly stated in the datasheet. However, it's recommended to follow standard PCB design guidelines for RF components, such as using a 1.6 mm thick PCB, and keeping the copper traces as short and wide as possible to minimize losses.
  • The TRS1-33-1T-75+ is designed to operate in a relatively stable environment. While it can withstand some level of vibration, prolonged exposure to high vibration (above 10G) may affect its performance and reliability. It's recommended to use proper vibration protection measures, such as shock-absorbing materials, to ensure optimal performance.
  • The maximum power handling capacity of the TRS1-33-1T-75+ is not explicitly stated in the datasheet. However, as a general rule of thumb, it's recommended to keep the input power below 1W to ensure optimal performance and prevent overheating.
