TRS3E65H,S1Q - Toshiba

TRS3E65H,S1Q Details

• Manufacturer Part Number:

  TRS3E65H,S1Q

• Part Life Cycle Code:

  Active

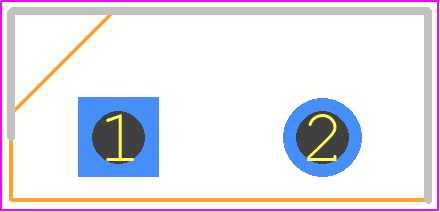

• Package Description:

  TO-220, 2 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  6

• Additional Feature:

  PD-CASE

• Application:

  GENERAL PURPOSE

• Case Connection:

  CATHODE

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON CARBIDE

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1.35 V

• JEDEC-95 Code:

  TO-220AC

• JESD-30 Code:

  R-PSFM-T2

• Non-rep Pk Forward Current-Max:

  28 A

• Number of Elements:

  1

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  175 °C

• Output Current-Max:

  12 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Power Dissipation-Max:

  55 W

• Rep Pk Reverse Voltage-Max:

  650 V

• Reverse Current-Max:

  45 µA

• Reverse Test Voltage:

  650 V

• Surface Mount:

  NO

• Technology:

  SCHOTTKY

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE
