SUPPLY VOLTAGE CAN ALSO OPERATE WITH 3V TO 3.6V; Configuration : 1:1 SPST
Analog IC - Other Type:
SPST
Bandwidth-Nom:
464 MHz
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.9 mm
Moisture Sensitivity Level:
1
Neg Supply Voltage-Max (Vsup):
-1.95 V
Neg Supply Voltage-Min (Vsup):
-1 V
Neg Supply Voltage-Nom (Vsup):
-1.8 V
Normal Position:
NO
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Off-state Isolation-Nom:
83 dB
On-state Resistance Match-Nom:
28 Ω
On-state Resistance-Max (Ron):
40 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
SEPARATE OUTPUT
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Signal Current-Max:
0.02 A
Supply Current-Max (Isup):
0.08 mA
Supply Voltage-Max (Vsup):
11 V
Supply Voltage-Min (Vsup):
1 V
Supply Voltage-Nom (Vsup):
1.8 V
Surface Mount:
YES
Switch-off Time-Max:
150 ns
Switch-on Time-Max:
120 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
TS12A4516D Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated to reduce crosstalk.
The TS12A4516D has a thermal pad that must be connected to a solid ground plane to dissipate heat efficiently. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Keep the device away from other heat sources, and avoid blocking airflow around the device.
While the datasheet specifies a maximum operating frequency of 1.6 GHz, the actual frequency limit depends on the specific application, PCB layout, and signal integrity. In general, it's recommended to derate the frequency by 10-20% to ensure reliable operation and minimize signal degradation.
To ensure signal integrity, use controlled impedance traces, and maintain a consistent impedance profile throughout the signal path. Use terminations and series resistors as needed to minimize reflections and ringing. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
The TS12A4516D requires a specific power sequencing to prevent damage or malfunction. Ensure that the VCC supply is applied before the input signals, and that the VCC supply is stable before applying input signals. Refer to the datasheet for the recommended power sequencing diagram.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS12A4516D Overview

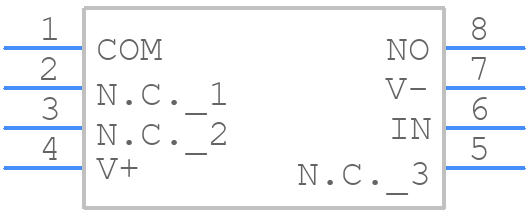

Use the download button to access the TS12A4516D schematic symbol, PCB footprint, and 3D model.
