Part Image

TS2007EIJT - STMicroelectronics

Description: 3 W, filter-free, class-D audio power amplifier with 6 or 12 dB fixed gain select

Download TS2007EIJT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

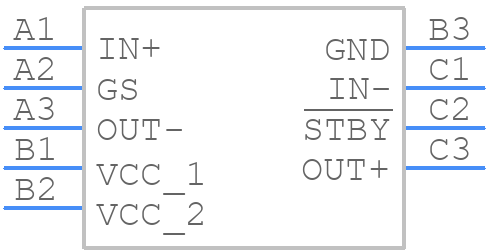

Symbol
TS2007EIJT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS2007EIJT - STMicroelectronics PCB footprint - BGA - BGA - 9-bump Flip-chip
click to zoom
3D Models
TS2007EIJT - STMicroelectronics - 3D model - BGA - 9-bump Flip-chip
click to zoom

TS2007EIJT Details

  • Manufacturer Part Number:

    TS2007EIJT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    ROHS COMPLIANT, BGA-9

  • Pin Count:

    9

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PBGA-B9

  • Length:

    1.57 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    3 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.57 mm

TS2007EIJT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TS2007EIJT is 2.7V to 5.5V, although it can operate down to 2.5V with reduced performance.
  • To ensure proper power-up and initialization, apply a stable voltage supply, connect the VCC pin to the power source, and wait for the internal voltage regulator to settle (typically 10ms). Then, apply a valid input signal to the VIN pin.
  • The TS2007EIJT can handle input voltages up to 12V, but it's recommended to limit the input voltage to 5.5V to ensure optimal performance and prevent damage.
  • The gain setting can be configured by connecting the GAIN pin to VCC, GND, or a resistive divider between VCC and GND. Refer to the datasheet for specific gain settings and corresponding pin configurations.
  • The EN (Enable) pin is used to enable or disable the TS2007EIJT. When EN is high, the device is enabled; when EN is low, the device is in shutdown mode, reducing power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS2007EIJT Overview

Use the download button to access the TS2007EIJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS200, or try a keyword search, such as Audio/Video Amplifiers
