TS2PCIE412RUAR - Texas Instruments

Description: 4-channel PCIe 8:16 multiplexer & demultiplexer passive FET switch

Download TS2PCIE412RUAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

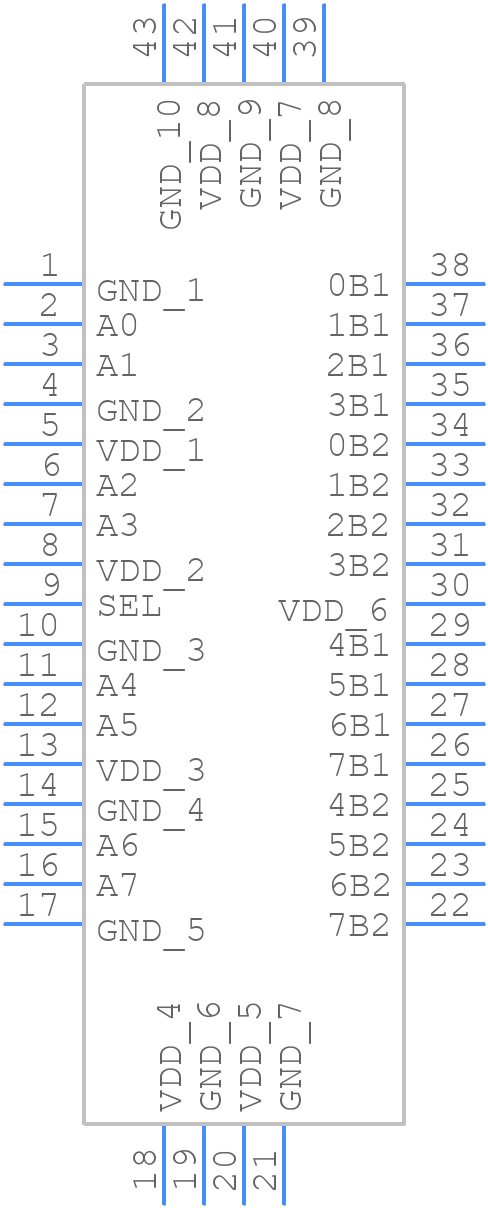

TS2PCIE412RUAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TS2PCIE412RUAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUA (R-PWQFN-N42)_2
click to zoom
3D Models
TS2PCIE412RUAR - Texas Instruments - 3D model - Quad Flat No-Lead - RUA (R-PWQFN-N42)_2
click to zoom

TS2PCIE412RUAR Details

  • Manufacturer Part Number:

    TS2PCIE412RUAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    42

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    PCI

  • Data Transfer Rate-Max:

    525 MBps

  • JESD-30 Code:

    R-PQCC-N42

  • JESD-609 Code:

    e4

  • Length:

    9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    2 V

  • Supply Voltage-Min:

    1.5 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, PCI

TS2PCIE412RUAR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide in the application note SLVA883, which includes guidelines for signal routing, power supply decoupling, and thermal management.
  • The TS2PCIE412RUAR can be configured for PCIe Gen 3 or Gen 4 operation through the use of external resistors on the RXEQ and TXEQ pins. Refer to the device datasheet and the PCIe specification for more information.
  • The TS2PCIE412RUAR supports cable lengths up to 7 meters at PCIe Gen 3 speeds and up to 3 meters at PCIe Gen 4 speeds, assuming a high-quality cable with minimal signal attenuation.
  • Texas Instruments provides a signal integrity troubleshooting guide in the application note SLVA884, which includes tips for identifying and resolving common signal integrity issues such as jitter, noise, and signal attenuation.
  • The power consumption of the TS2PCIE412RUAR varies depending on the operating mode. Refer to the device datasheet for detailed power consumption specifications, and use the TI Power Estimator tool to estimate power consumption in your specific application.
