TS3320AQPR - STMicroelectronics

Description: Micropower high precision series voltage reference

Download TS3320AQPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

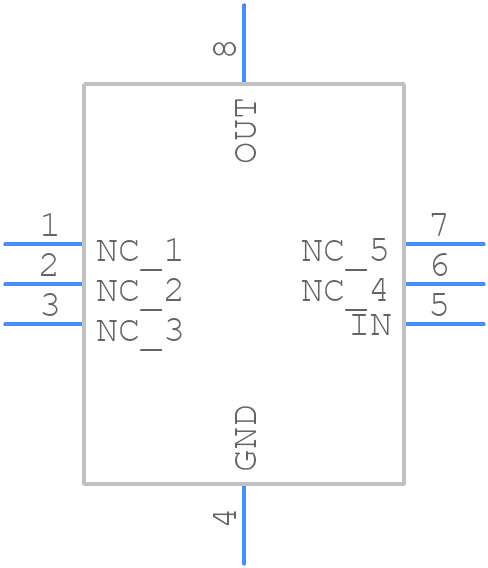

TS3320AQPR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS3320AQPR - STMicroelectronics PCB footprint - Other - Other - VFQFPN 1.5X1.5X0.55 8L PITCH0.5
click to zoom
3D Models
TS3320AQPR - STMicroelectronics - 3D model - Other - VFQFPN 1.5X1.5X0.55 8L PITCH0.5
click to zoom

TS3320AQPR Details

  • Manufacturer Part Number:

    TS3320AQPR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-XQCC-N8

  • Length:

    1.5 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.005 A

  • Output Voltage-Max:

    2.051072 V

  • Output Voltage-Min:

    2.044928 V

  • Output Voltage-Nom:

    2.048 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC8,.06SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    30 ppm/°C

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.15%

  • Width:

    1.5 mm

TS3320AQPR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TS3320AQPR is 2.7V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a voltage range of 2.5V to 6.0V, but the performance may vary.
  • To ensure proper power-up and initialization, follow the recommended power-up sequence: VCC must be applied before the input signals, and the input signals must be stable before the output is enabled. Additionally, a 0.1uF decoupling capacitor is recommended between VCC and GND pins.
  • The TS3320AQPR can sink or source up to 32mA of current per output pin, as specified in the datasheet. However, it's essential to consider the total current consumption and ensure that the device is operated within the recommended operating conditions to avoid overheating or damage.
  • The TS3320AQPR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and handling. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected environment.
  • For optimal performance and thermal management, follow these guidelines: use a multi-layer PCB with a solid ground plane, keep the device away from heat sources, and ensure good airflow around the device. A thermal pad or heat sink may be required for high-power applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS3320AQPR Overview

Use the download button to access the TS3320AQPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS332, or try a keyword search, such as Voltage References
