TS372IDT - STMicroelectronics

Description: TS372IDT, Dual Comparator Open Drain 0.6μs 12 V, 15 V, 5 V, 9 V 8-Pin SO

Download TS372IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

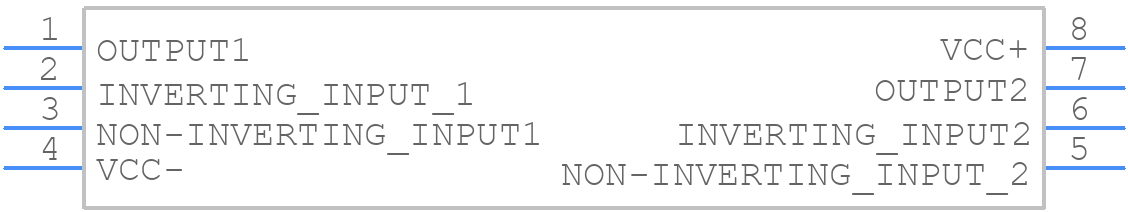

Symbol
TS372IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS372IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SO_1
click to zoom
3D Models
TS372IDT - STMicroelectronics - 3D model - Small Outline Packages - 8-Pin SO_1
click to zoom

TS372IDT Details

  • Manufacturer Part Number:

    TS372IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MICRO, PLASTIC, SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5.65

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0003 µA

  • Input Offset Voltage-Max:

    12000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    600 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.75 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TS372IDT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TS372IDT involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the feedback network as short as possible.
  • The output capacitor for the TS372IDT should be chosen based on the desired output voltage ripple, output current, and operating frequency. A general rule of thumb is to use a capacitor with a capacitance value between 10uF to 22uF, and a voltage rating of at least 2x the output voltage. The ESR of the capacitor should be as low as possible, typically < 0.1 ohms.
  • The TS372IDT can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The output voltage of the TS372IDT can be adjusted by changing the ratio of the feedback resistors (R1 and R2) or by using a potentiometer in the feedback network. The output voltage can be calculated using the formula: Vout = (R2 / R1) x Vref, where Vref is the internal reference voltage (typically 1.25V).
  • The TS372IDT can deliver up to 2A of output current, but the maximum output current may be limited by the input voltage, output voltage, and the thermal performance of the device. It's recommended to check the device's thermal performance and adjust the output current accordingly to prevent overheating.
