TS393ID - STMicroelectronics

Description: Micropower dual CMOS voltage comparators

Download TS393ID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

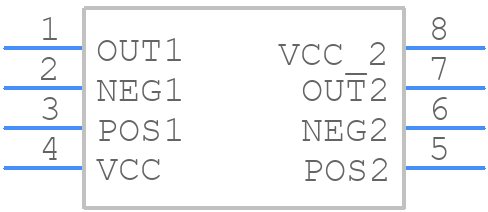

Symbol
TS393ID - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS393ID - STMicroelectronics PCB footprint - Other - Other - SOIC127P600X175-8N
click to zoom
3D Models
TS393ID - STMicroelectronics - 3D model - Other - SOIC127P600X175-8N
click to zoom

TS393ID Details

  • Manufacturer Part Number:

    TS393ID

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MICRO, PLASTIC, SO-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.0006 µA

  • Bias Current-Max (IIB) @25C:

    0.0006 µA

  • Input Offset Voltage-Max:

    6500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1500 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TS393ID Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5275, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • To configure the TS393ID for high-speed mode, set the HS_MODE pin high and ensure that the input clock frequency is within the specified range (25 MHz to 100 MHz). Additionally, adjust the output voltage and termination resistors according to the specific application requirements.
  • The TS393ID is rated for operation from -40°C to 125°C (junction temperature). However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation in the system design.
  • While the TS393ID is specified for a 3.3V input voltage, it can operate with a range of input voltages from 2.5V to 5.5V. However, the device's performance, power consumption, and output voltage may vary depending on the input voltage. Consult the datasheet and application notes for specific guidance.
  • To troubleshoot output voltage regulation issues, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the specified range, the output load is within the recommended range, and the feedback resistors are correctly configured. Consult the datasheet and application notes for specific troubleshooting guidelines.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TS393ID Overview

Use the download button to access the TS393ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS393, or try a keyword search, such as Comparators

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
