TS3A225EYFFR - Texas Instruments

Description: Audio Jack Switch with Autonomous Mic and Ground Detection

Download TS3A225EYFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

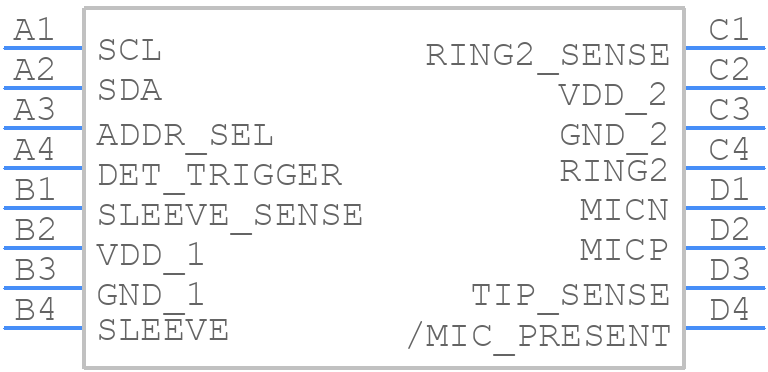

Symbol
TS3A225EYFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TS3A225EYFFR - Texas Instruments PCB footprint - BGA - BGA - YFF0016_2020
click to zoom
3D Models
TS3A225EYFFR - Texas Instruments - 3D model - BGA - YFF0016_2020
click to zoom

TS3A225EYFFR Details

  • Manufacturer Part Number:

    TS3A225EYFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : Audio jack

  • Analog IC - Other Type:

    AUDIO/VIDEO SWITCH

  • Input Voltage-Max:

    4.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-XBGA-B16

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance-Max (Ron):

    10 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    4.5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

TS3A225EYFFR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLVA883, which includes guidelines for signal routing, decoupling, and grounding to ensure optimal performance.
  • The TS3A225EYFFR requires a 100-ohm differential termination resistor at the receiver end to match the impedance of the transmission line. Additionally, a 50-ohm series termination resistor can be used at the transmitter end to reduce signal reflections.
  • The maximum cable length supported by the TS3A225EYFFR depends on the signal frequency and cable characteristics. As a general guideline, the cable length should be limited to 10 inches (25 cm) for frequencies up to 1 GHz. Longer cable lengths can be used with proper signal conditioning and termination.
  • The TS3A225EYFFR can be configured for high-speed data transmission by adjusting the output swing and slew rate. However, increasing the speed comes at the cost of higher power consumption. The optimal configuration depends on the specific application requirements and power budget.
  • The TS3A225EYFFR has built-in ESD protection and latch-up prevention mechanisms, including diodes and resistors, to protect the device from electrostatic discharge and latch-up events. These measures help ensure the device's reliability and robustness in harsh operating environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS3A225EYFFR Overview

Use the download button to access the TS3A225EYFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3A2, or try a keyword search, such as Multiplexers or Switches

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
