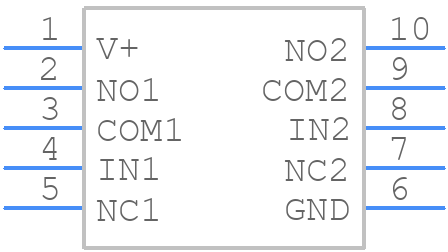

TS3A24159DGSR - Texas Instruments

TS3A24159DGSR Details

• Manufacturer Part Number:

  TS3A24159DGSR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  MSOP

• Pin Count:

  10

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  Configuration : 2:1 SPDT

• Analog IC - Other Type:

  SPDT

• Bandwidth-Nom:

  23 MHz

• Input Voltage-Max:

  3.6 V

• JESD-30 Code:

  S-PDSO-G10

• JESD-609 Code:

  e4

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Normal Position:

  NO/NC

• Number of Channels:

  2

• Number of Functions:

  2

• Number of Terminals:

  10

• Off-state Isolation-Nom:

  73 dB

• On-state Resistance Match-Nom:

  0.02 Ω

• On-state Resistance-Max (Ron):

  0.5 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP10,.19,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.1 mm

• Signal Current-Max:

  0.1 A

• Supply Current-Max (Isup):

  0.05 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  1.65 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  35 ns

• Switch-on Time-Max:

  75 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
