TS3A27518ETRTWRQ1 - Texas Instruments

Description: Automotive 6-Bit, 1-of-2 Mux/Demux with 240 MHz Bandwidth

Download TS3A27518ETRTWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

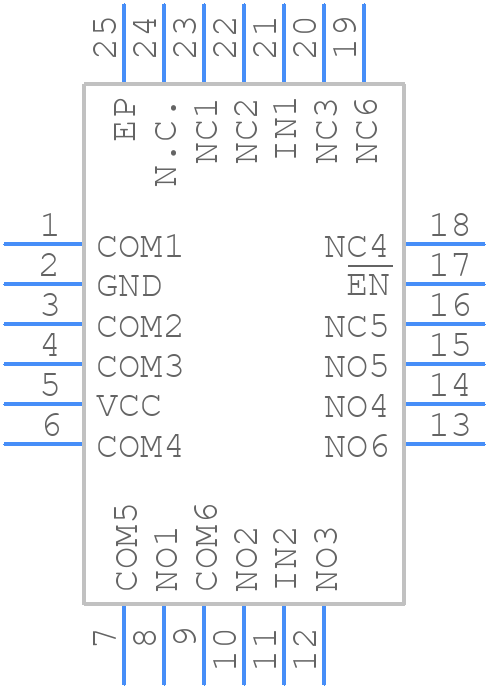

TS3A27518ETRTWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TS3A27518ETRTWRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead QFN-
click to zoom
3D Models
TS3A27518ETRTWRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - 24-Lead QFN-
click to zoom

TS3A27518ETRTWRQ1 Details

  • Manufacturer Part Number:

    TS3A27518ETRTWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 2:1 SPDT

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Bandwidth-Nom:

    240 MHz

  • Input Voltage-Max:

    3.6 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Normal Position:

    NO

  • Number of Channels:

    6

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    1 Ω

  • On-state Resistance-Max (Ron):

    16.3 Ω

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.05 A

  • Supply Current-Max (Isup):

    0.0012 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    35.2 ns

  • Switch-on Time-Max:

    56.7 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TS3A27518ETRTWRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TS3A27518ETRTWRQ1 involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
  • The TS3A27518ETRTWRQ1 requires a single 1.8V power supply. Ensure that the power supply is clean and well-regulated. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized. TI recommends using a power-on reset circuit to ensure the device is properly reset during power-up.
  • The TS3A27518ETRTWRQ1 has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate in high-temperature environments. TI provides thermal resistance values in the datasheet to aid in thermal design.
  • Use oscilloscopes and logic analyzers to debug signal integrity issues. Check the device's power supply, clock signals, and data signals for anomalies. Consult the datasheet and application notes for troubleshooting guides and FAQs. TI also provides technical support and online resources to aid in debugging.
  • Yes, the TS3A27518ETRTWRQ1 is a sensitive device and requires proper ESD protection during handling and assembly. Use ESD-safe materials, follow proper handling procedures, and consider using ESD protection devices on the PCB.
