Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the differential pairs.
To ensure signal integrity, use a differential signal pair with a 100-ohm differential impedance, keep the signal traces short and away from noise sources, and use a common-mode filter or choke to reduce electromagnetic interference (EMI).
The maximum cable length supported by the TS3A44159PWRG4 depends on the specific application and the type of cable used. As a general rule, the maximum cable length is limited by the signal attenuation and distortion, and it's recommended to keep the cable length as short as possible. Texas Instruments recommends using cables with a maximum length of 1 meter for optimal performance.
To troubleshoot issues with the TS3A44159PWRG4, start by checking the power supply voltage, signal integrity, and PCB layout. Use an oscilloscope to measure the signal waveforms and check for any signs of signal distortion or attenuation. Also, check the device's operating temperature and ensure that it's within the recommended range.
Yes, the TS3A44159PWRG4 is compatible with other Texas Instruments devices, including microcontrollers, FPGAs, and ASICs. However, it's recommended to check the specific device compatibility and ensure that the devices are operating within the same voltage and frequency range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TS3A44159PWRG4 Overview

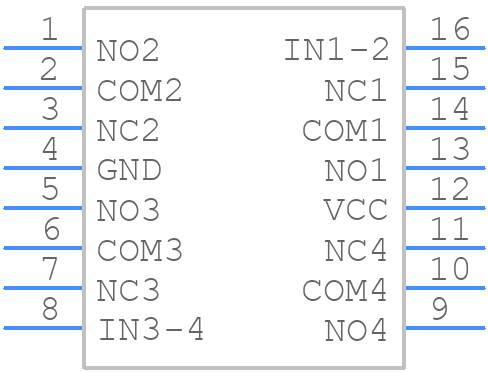

Use the download button to access the TS3A44159PWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3A4,
or try a keyword search, such as Multiplexers or Switches
