A good PCB layout for the TS3A4751RGYR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce EMI.
The TS3A4751RGYR requires a single 1.8V to 3.6V power supply. It's recommended to power the device with a clean, low-noise power supply, and to ensure that the power supply is stable before applying signals to the device. Power sequencing is not critical, but it's recommended to power the device after the power supply has stabilized.
The TS3A4751RGYR can support data rates up to 100 Mbps. However, the actual data rate achievable depends on the signal quality, PCB layout, and the quality of the transmission lines. The device's bandwidth and signal attenuation can also limit the maximum data rate.
To troubleshoot issues with the TS3A4751RGYR, start by verifying the power supply and signal connections. Check for signal integrity issues, such as signal attenuation or reflections, and ensure that the device is properly terminated. Common pitfalls to avoid include improper PCB layout, inadequate power supply decoupling, and incorrect signal termination.
The TS3A4751RGYR has a maximum junction temperature of 150°C. To ensure reliable operation in high-temperature environments, ensure good airflow, use a heat sink if necessary, and avoid overheating the device. It's also recommended to follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3A4751RGYR Overview

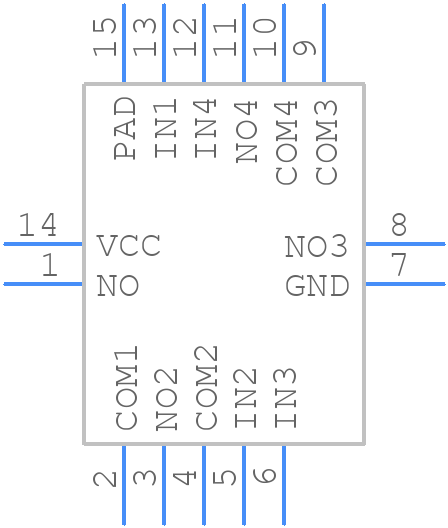

Use the download button to access the TS3A4751RGYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3A4,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
