A good PCB layout for the TS3A5017DBQR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce EMI.
The TS3A5017DBQR requires a single 1.8V to 3.6V power supply. It's recommended to power the device with a clean, low-noise power supply, and to sequence the power-on in the following order: VCC, then VIN. A 10uF capacitor on the VCC pin and a 1uF capacitor on the VIN pin are recommended to filter out noise.
The TS3A5017DBQR can support data rates up to 100 Mbps, but the actual data rate achieved will depend on the specific application, PCB layout, and signal quality.
The TS3A5017DBQR has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving air flow, and reducing power consumption. In high-temperature environments, consider using a thermal interface material and a heat sink with a thermal conductivity of at least 1 W/m-K.
The TS3A5017DBQR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3A5017DBQR Overview

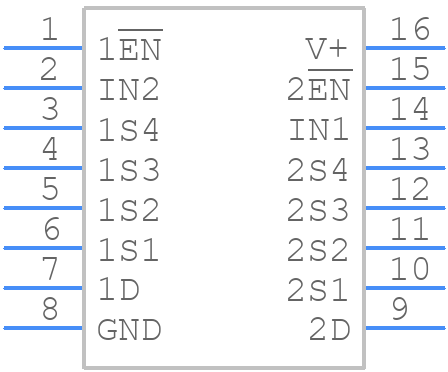

Use the download button to access the TS3A5017DBQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3A5,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
