TS3A5017DR - Texas Instruments

Description: 14-Ohm Dual SP4T Analog Switch 3.3-V/2.5-V Analog Multiplexer/Demultiplexer

Download TS3A5017DR Model

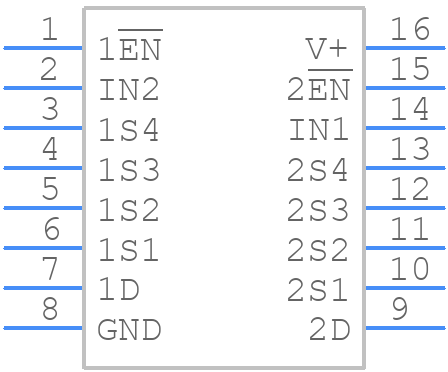

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TS3A5017DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOIC(D)
click to zoom
3D Models
TS3A5017DR - Texas Instruments  - 3D model - Small Outline Packages - SOIC(D)
click to zoom

TS3A5017DR Details

  • Manufacturer Part Number:

    TS3A5017DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 4:1

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Bandwidth-Nom:

    165 MHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    48 dB

  • On-state Resistance Match-Nom:

    1 Ω

  • On-state Resistance-Max (Ron):

    24 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    6 ns

  • Switch-on Time-Max:

    10 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TS3A5017DR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TS3A5017DR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce EMI.
  • The TS3A5017DR requires a single 3.3V or 5V power supply. It's recommended to power the device with a clean, low-noise power supply, and to sequence the power-on in the following order: VCC, then VIN. The device can operate with a wide range of power supplies, but it's essential to ensure the power supply is stable and noise-free.
  • The TS3A5017DR can achieve data transfer rates of up to 100 Mbps, making it suitable for high-speed applications. However, the actual data transfer rate may vary depending on the system design, PCB layout, and signal quality.
  • The TS3A5017DR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink or a thermal pad, especially in high-temperature environments. Additionally, ensuring good airflow and keeping the device away from heat sources can help reduce the junction temperature.
  • The TS3A5017DR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Additionally, the device has latch-up protection, but it's recommended to follow proper design and layout guidelines to prevent latch-up conditions.
