TS3A5017QRGYRQ1 - Texas Instruments

Description: 2-Channel, 4:1 Low Voltage Analog Switch with Powered-Off Protection

Download TS3A5017QRGYRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

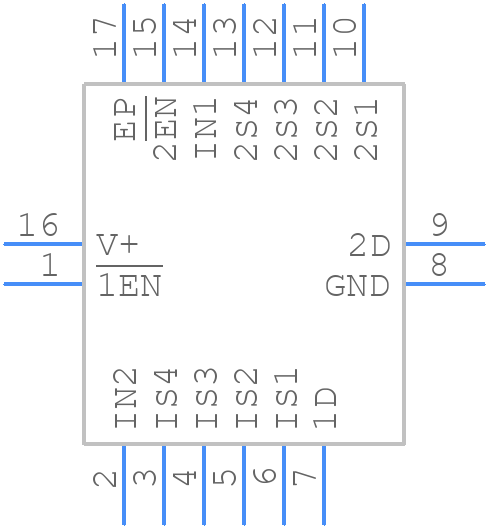

TS3A5017QRGYRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TS3A5017QRGYRQ1 - Texas Instruments PCB footprint - Other - Other - RGY (R-PVQFN-N16)_1
click to zoom
3D Models
TS3A5017QRGYRQ1 - Texas Instruments - 3D model - Other - RGY (R-PVQFN-N16)_1
click to zoom

TS3A5017QRGYRQ1 Details

  • Manufacturer Part Number:

    TS3A5017QRGYRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-10-28

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 4:1

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Bandwidth-Nom:

    165 MHz

  • JESD-30 Code:

    R-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On-state Resistance-Max (Ron):

    28 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Supply Voltage-Max (Vsup):

    1.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TS3A5017QRGYRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TS3A5017QRGYRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a shielded cable or a twisted pair for the analog input can help reduce EMI.
  • To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 0.1 μF) between VCC and GND, and a 10 μF capacitor between VCC and GND for bulk decoupling. Also, use a 1 kΩ resistor in series with the VCC pin to prevent voltage spikes.
  • The maximum cable length for the analog input of the TS3A5017QRGYRQ1 depends on the specific application and the frequency of the signal. As a general rule, keep the cable length as short as possible (less than 10 inches) to minimize signal degradation and noise pickup.
  • To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, follow the recommended operating temperature range (-40°C to 125°C) and thermal impedance (θJA) of 30°C/W.
  • The recommended input impedance for the TS3A5017QRGYRQ1 is 1 kΩ or higher to ensure proper signal integrity and to prevent signal attenuation.
