A good PCB layout for the TS3A5018DR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce EMI.
The TS3A5018DR requires a single 3.3V power supply. It's recommended to power the device using a low-dropout regulator (LDO) with a high power supply rejection ratio (PSRR) to minimize noise. Power sequencing is not critical, but it's recommended to power the device after the analog and digital supplies are stable.
The TS3A5018DR can support data rates up to 100 Mbps. However, the actual data rate achievable depends on the signal quality, cable length, and system noise. The device's bandwidth and signal-to-noise ratio (SNR) also impact the maximum data rate.
To troubleshoot issues with the TS3A5018DR, use an oscilloscope to analyze the signal quality and check for signal reflections, ringing, or distortion. Verify that the device is properly powered and that the signal sources are stable. Also, check the PCB layout and ensure that the device is properly decoupled.
The TS3A5018DR has a maximum junction temperature of 150°C. To ensure reliable operation in high-temperature environments, ensure good airflow, use a heat sink if necessary, and avoid overheating the device. Also, follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3A5018DR Overview

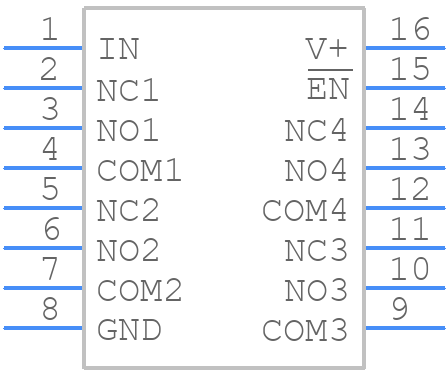

Use the download button to access the TS3A5018DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3A5,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
