TS3A5018PW - Texas Instruments

Description: 10-Ohm Quad SPDT Analog Switch

Download TS3A5018PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

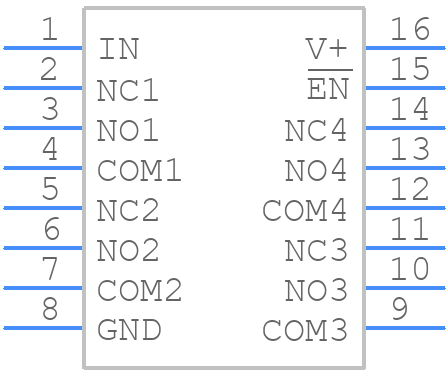

TS3A5018PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TS3A5018PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
TS3A5018PW - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

TS3A5018PW Details

  • Manufacturer Part Number:

    TS3A5018PW

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    Configuration : 2:1 SPDT

  • Analog IC - Other Type:

    SPDT

  • Bandwidth-Nom:

    300 MHz

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NC

  • Number of Channels:

    4

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    48 dB

  • On-state Resistance Match-Nom:

    0.4 Ω

  • On-state Resistance-Max (Ron):

    22 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.002 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    9 ns

  • Switch-on Time-Max:

    10.5 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TS3A5018PW Frequently Asked Questions (FAQs)

  • A good PCB layout for the TS3A5018PW involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce EMI.
  • The TS3A5018PW requires a single 3.3V power supply. It's recommended to power the device after the analog and digital power supplies are stable. The power sequencing requirements are not critical, but it's recommended to power the device after the analog power supply is stable.
  • The recommended termination scheme for the TS3A5018PW is to use a 50Ω resistor in series with the output pins (OUTA and OUTB) and a 50Ω load resistor to ground. This ensures proper signal termination and minimizes signal reflections.
  • The TS3A5018PW has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. A thermal via array or a thermal pad connected to a ground plane can be used to dissipate heat. Additionally, ensuring good airflow around the device can help reduce the operating temperature.
  • The recommended input signal levels for the TS3A5018PW are differential signals with a minimum amplitude of 100mV and a maximum amplitude of 2V. The output signal levels are typically 2Vpp differential, but can be adjusted using the output common-mode voltage (VOCM) pin.
