A good PCB layout for the TS3A5018PWR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a thermal pad and vias to dissipate heat.
To ensure proper power-up and configuration, it's recommended to follow the power-up sequence outlined in the datasheet, which includes applying the input voltage, waiting for the internal voltage regulator to stabilize, and then applying the enable signal. Additionally, the device should be configured using the I2C interface during startup.
The TS3A5018PWR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad and vias, and to keep the device within the recommended operating temperature range. Additionally, thermal simulation and modeling can help identify potential thermal issues early in the design process.
To troubleshoot issues with the TS3A5018PWR, start by verifying the power supply and input voltage, then check the device's configuration and register settings. Use a logic analyzer or oscilloscope to monitor the device's signals and identify any anomalies. Consult the datasheet and application notes for troubleshooting guides and FAQs.
The TS3A5018PWR has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Use ESD-safe materials and equipment, and ensure that the device is properly grounded during handling and assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3A5018PWR Overview

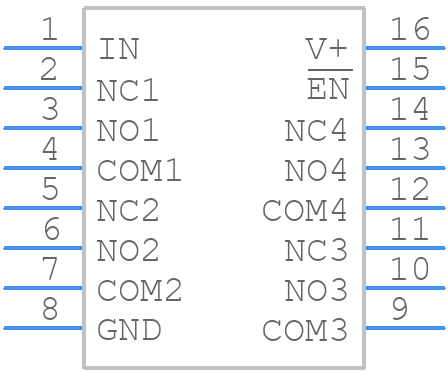

Use the download button to access the TS3A5018PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3A5,
or try a keyword search, such as Multiplexers or Switches
