A good PCB layout for the TS3A5223RSWR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce EMI.
The TS3A5223RSWR requires a single 1.8V to 3.6V power supply. It's recommended to power the device with a clean, low-noise power supply, and to sequence the power-on in the following order: VCC, then EN. The device also has an internal power-on reset circuit that ensures the device is properly reset during power-up.
The TS3A5223RSWR can support data rates up to 100 Mbps. However, the actual data rate achievable depends on the system design, PCB layout, and signal quality. The device's bandwidth is limited by the internal capacitance and the output impedance, which can affect the signal rise and fall times.
The TS3A5223RSWR has a maximum junction temperature of 150°C. To ensure proper thermal management, it's recommended to provide adequate heat sinking, use a thermal pad or heat sink, and ensure good airflow around the device. The device's thermal resistance (θJA) is 45°C/W, and the thermal resistance (ψJT) is 10°C/W.
The TS3A5223RSWR has built-in ESD protection diodes on all pins, which can withstand up to ±2 kV human body model (HBM) and ±200 V machine model (MM) ESD events. Additionally, the device has latch-up protection circuitry to prevent latch-up during power-on and power-off transitions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3A5223RSWR Overview

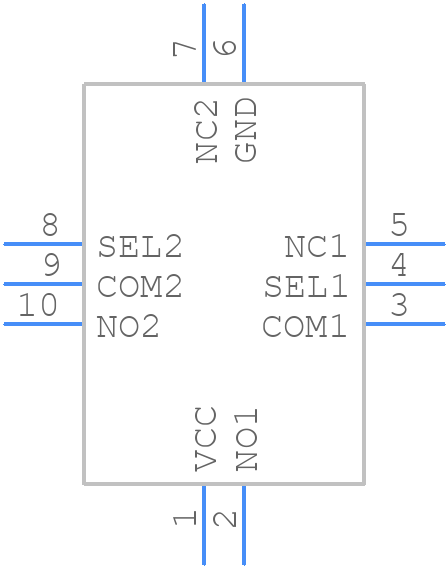

Use the download button to access the TS3A5223RSWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3A5,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
