Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure signal integrity.
The TS3DV421RUAR has a high power dissipation, so it's crucial to implement proper thermal management. This can be achieved by using a heat sink, thermal vias, and a thermal pad on the PCB. Ensure good airflow and avoid blocking the airflow around the device.
The datasheet recommends using 50-ohm termination for both input and output signals. However, the specific termination requirements may vary depending on the application and signal frequencies. It's essential to consult the datasheet and application notes for specific guidance.
To minimize reflections and ensure signal integrity, use controlled impedance transmission lines, and match the impedance of the signal traces to the device's input and output impedance. Additionally, use signal termination resistors and consider using a signal integrity analysis tool to simulate and optimize your design.
The TS3DV421RUAR is a sensitive device and requires proper ESD protection and handling precautions. Use an ESD wrist strap, mat, or workstation, and handle the device by the body or pins, avoiding direct contact with the die. Follow the recommended storage and handling procedures outlined in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3DV421RUAR Overview

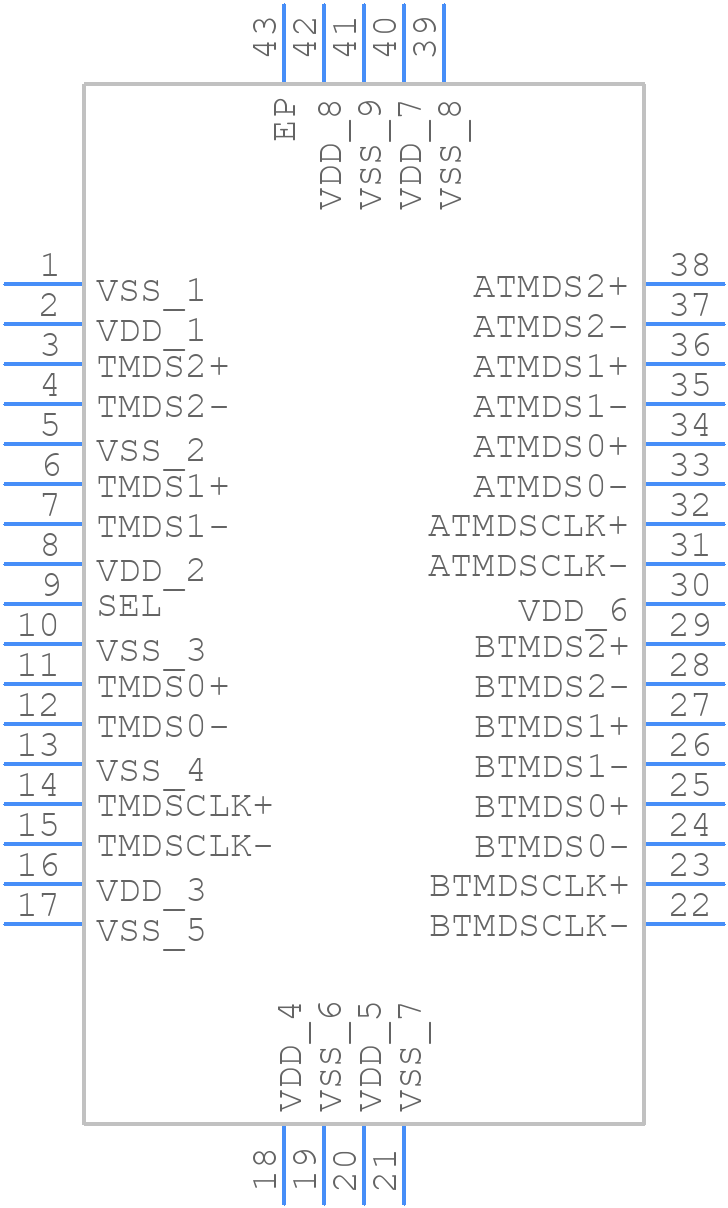

Use the download button to access the TS3DV421RUAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3DV,
or try a keyword search, such as Multiplexers or Switches
