A good PCB layout for the TS3L110PWR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power source. Additionally, using a common mode choke and shielding can help reduce EMI.
To ensure the TS3L110PWR operates within its SOA, monitor the device's junction temperature (TJ) and ensure it does not exceed 150°C. Also, keep the input voltage within the recommended range, and avoid excessive output current or voltage.
When selecting input and output capacitors for the TS3L110PWR, consider the capacitor's voltage rating, capacitance value, and equivalent series resistance (ESR). Choose capacitors with a voltage rating higher than the input voltage, and ensure the ESR is low enough to minimize voltage ripple.
To troubleshoot issues with the TS3L110PWR, start by checking the input voltage and current, output voltage and current, and device temperature. Verify that the device is properly soldered and the PCB layout is correct. Use an oscilloscope to check for voltage ripple and noise, and consult the datasheet and application notes for guidance.
Operating the TS3L110PWR at high ambient temperatures can reduce its reliability and lifespan. To mitigate this, ensure good airflow around the device, use a heat sink if necessary, and consider derating the device's output current and voltage. Consult the datasheet for temperature-related specifications and guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3L110PWR Overview

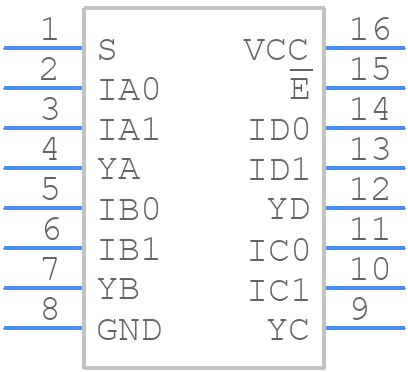

Use the download button to access the TS3L110PWR schematic symbol, PCB footprint, and 3D model.
