Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure signal integrity.
To minimize high-frequency noise, use a low-pass filter or a ferrite bead in series with the switch output, and ensure proper grounding and shielding of the PCB. Additionally, consider using a spread-spectrum clock or a clock jitter cleaner to reduce EMI.
The TS3L301DGGRG4 is capable of supporting data rates up to 3.2 Gbps, but the actual data rate achievable depends on the specific application, PCB design, and signal quality. It's recommended to perform signal integrity simulations and testing to determine the maximum data rate for your specific use case.
To ensure signal integrity, use a high-quality PCB material, maintain a consistent impedance, and minimize signal reflections. Additionally, consider using signal conditioning components, such as terminators or equalizers, to improve signal quality.
The power consumption of the TS3L301DGGRG4 depends on the operating frequency, voltage, and mode of operation. To reduce power consumption, consider using a lower operating frequency, reducing the supply voltage, or using the switch's power-down mode when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3L301DGGRG4 Overview

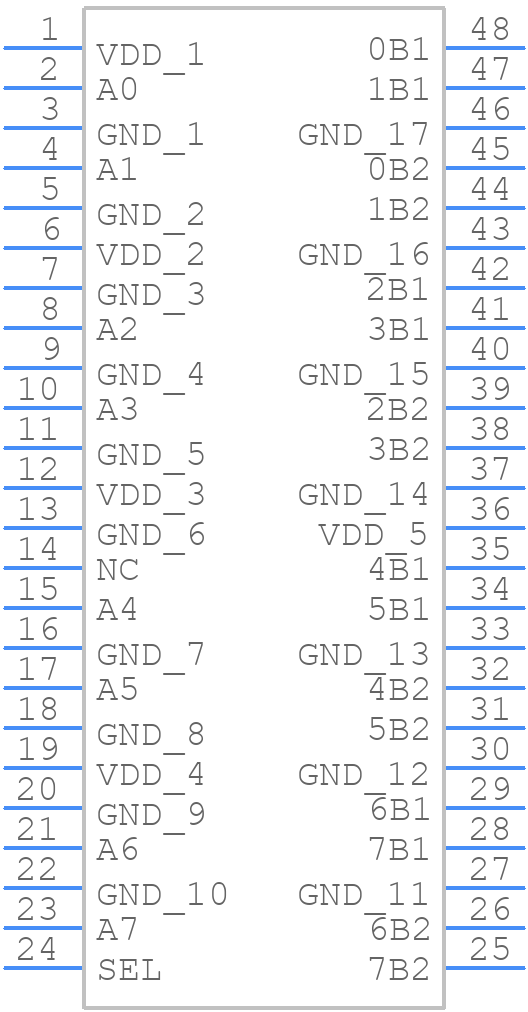

Use the download button to access the TS3L301DGGRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3L3,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
