CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Signal Current-Max:
0.128 A
Supply Current-Max (Isup):
0.6 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Switch-off Time-Max:
0.9 ns
Switch-on Time-Max:
0.5 ns
Switching:
BREAK-BEFORE-MAKE
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.5 mm
TS3L501ERUAR Frequently Asked Questions (FAQs)
A good PCB layout for the TS3L501ERUAR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-on and power-off of the TS3L501ERUAR, it's recommended to use a soft-start circuit to limit the inrush current during power-on, and to use a power-down sequence that follows the recommended timing diagram in the datasheet.
The TS3L501ERUAR has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving airflow, and reducing power consumption.
To troubleshoot issues with the TS3L501ERUAR, start by checking the power supply voltage, input and output signals, and device temperature. Use an oscilloscope to verify the signal waveforms and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
The TS3L501ERUAR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is properly grounded during handling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3L501ERUAR Overview

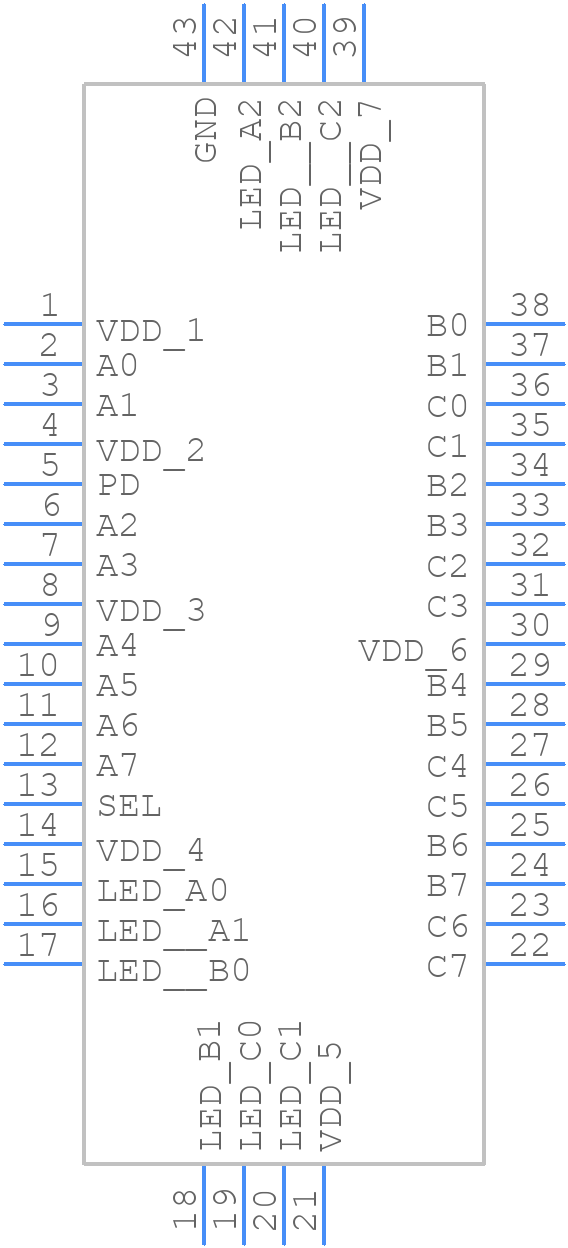

Use the download button to access the TS3L501ERUAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3L5,
or try a keyword search, such as Multiplexers or Switches
