Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device.
To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and use termination resistors as recommended in the datasheet. Additionally, use a common mode filter or a common mode choke to reduce electromagnetic interference (EMI).
The maximum cable length supported by the TS3USB221EDRCR depends on the specific application and the type of cable used. As a general guideline, the device supports cable lengths up to 3 meters for USB 2.0 and 1 meter for USB 3.0. However, it's recommended to consult the datasheet and perform signal integrity simulations to determine the maximum cable length for a specific application.
The TS3USB221EDRCR can be configured for USB 3.0 or USB 2.0 operation using the MODE pin. For USB 3.0 operation, the MODE pin should be tied to VCC, and for USB 2.0 operation, it should be tied to GND. Additionally, the device can be configured using the I2C interface to set the operating mode and other parameters.
The power consumption of the TS3USB221EDRCR depends on the operating mode and the frequency of operation. According to the datasheet, the typical power consumption is 150 mA for USB 3.0 operation and 50 mA for USB 2.0 operation. However, the actual power consumption may vary depending on the specific application and operating conditions.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TS3USB221EDRCR Overview

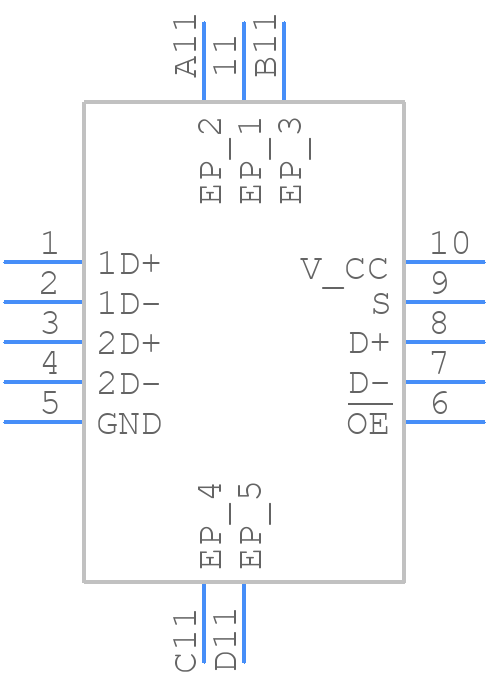

Use the download button to access the TS3USB221EDRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3US,
or try a keyword search, such as Multiplexers or Switches
