A good PCB layout for the TS3USBA225RUTR involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the USB connector. TI provides a recommended PCB layout in the datasheet and application notes.
To ensure signal integrity and minimize EMI emissions, use a shielded cable, keep the USB traces away from noise sources, and use a common-mode filter or ferrite bead on the USB lines. Additionally, follow the recommended PCB layout and use a solid ground plane to reduce radiation.
The TS3USBA225RUTR supports cable lengths up to 3 meters (10 feet) for USB 2.0 and 1.5 meters (5 feet) for USB 3.0, assuming a good quality cable with minimal attenuation. However, the actual cable length may vary depending on the specific application and cable characteristics.
The TS3USBA225RUTR has built-in hot-swapping and power management features. Use the EN pin to control the power state of the device, and ensure that the VBUS pin is connected to a power source that can handle the maximum current requirements of the downstream device.
The TS3USBA225RUTR has a maximum junction temperature of 125°C. Ensure reliable operation by providing adequate heat sinking, using a thermal pad or heat sink, and keeping the device away from heat sources. Follow the recommended thermal design guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3USBA225RUTR Overview

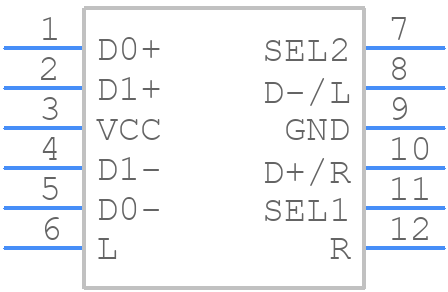

Use the download button to access the TS3USBA225RUTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3US,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
