TS3USBCA420RSVR - Texas Instruments

Description: USB Interface IC USB Type-C SBU Multiplexer 16-UQFN 0 to 70

Download TS3USBCA420RSVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

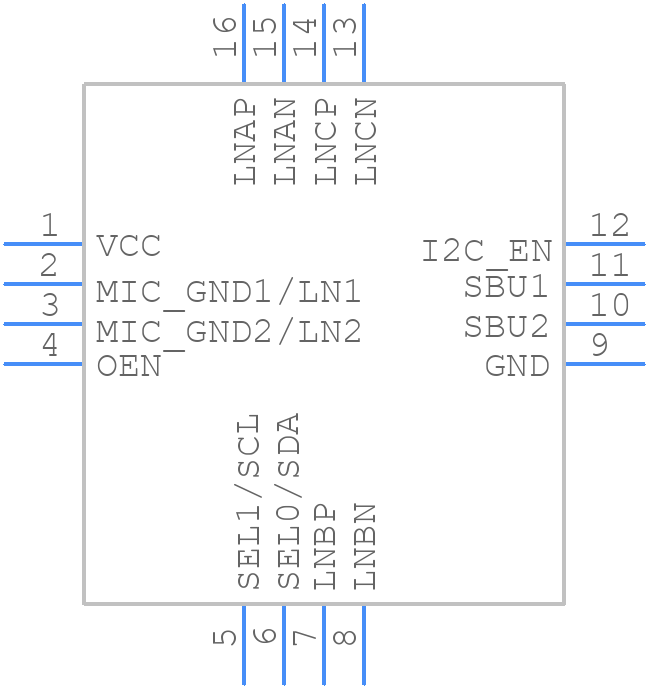

Symbol
TS3USBCA420RSVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TS3USBCA420RSVR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSV0016A
click to zoom
3D Models
TS3USBCA420RSVR - Texas Instruments - 3D model - Quad Flat No-Lead - RSV0016A
click to zoom

TS3USBCA420RSVR Details

  • Manufacturer Part Number:

    TS3USBCA420RSVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : 3:1,4:1

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • Bandwidth-Nom:

    500 MHz

  • JESD-30 Code:

    R-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.5 Ω

  • On-state Resistance-Max (Ron):

    7.5 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max (Isup):

    0.07 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    650 ns

  • Switch-on Time-Max:

    1200 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

TS3USBCA420RSVR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and routing guide in the TS3USBCA420RSVR evaluation module documentation. It's essential to follow these guidelines to minimize signal integrity issues and ensure optimal performance.
  • The TS3USBCA420RSVR has a thermal pad that must be connected to a solid ground plane to dissipate heat. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Refer to the thermal management section in the datasheet for more information.
  • The TS3USBCA420RSVR requires a clean, low-noise power supply with a voltage range of 3.3V ± 10%. Ensure the power supply can provide sufficient current to support the device's operating conditions. Additionally, decouple the power supply lines with capacitors to minimize noise and ripple.
  • The TS3USBCA420RSVR supports multiple USB speeds, including USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0. Configure the device using the appropriate pin settings and register configurations, as described in the datasheet and application notes.
  • Texas Instruments recommends using ESD protection devices, such as the TPD4E05U06, and filtering components, like the THVD1550, to protect the TS3USBCA420RSVR from electrostatic discharge and electromagnetic interference. Refer to the datasheet and application notes for more information.
