Part Image

TS4621MLEIJT - STMicroelectronics

Description: High-performance class-G stereo headphone amplifier,2.3V ~ 4.8V,-40°C ~ 85°C (TA), 16-WFBGA, FCBGA.

Download TS4621MLEIJT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

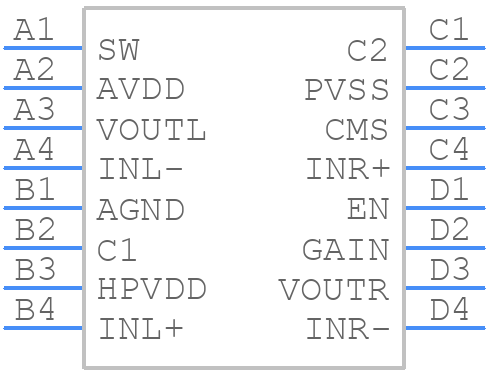

Symbol
TS4621MLEIJT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS4621MLEIJT - STMicroelectronics PCB footprint - BGA - BGA - Flip-chip - 16 bumps
click to zoom
3D Models
TS4621MLEIJT - STMicroelectronics - 3D model - BGA - Flip-chip - 16 bumps
click to zoom

TS4621MLEIJT Details

  • Manufacturer Part Number:

    TS4621MLEIJT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    FLIPCHIP-16

  • Country Of Origin:

    France

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    ESD for VOUTR, VOUTL vs. AGND is 3A

  • Consumer IC Type:

    CLASS G AUDIO AMPLIFIER

  • Gain:

    6 dB

  • JESD-30 Code:

    S-PBGA-B16

  • Length:

    1.65 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.655 mm

  • Supply Current-Max:

    6.5 mA

  • Supply Voltage-Max (Vsup):

    4.8 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.65 mm

TS4621MLEIJT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TS4621MLEIJT is 2.7V to 5.5V.
  • To ensure the TS4621MLEIJT is properly powered on, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a reliable ground connection. Also, ensure that the voltage supply is within the recommended operating range.
  • The maximum current that the TS4621MLEIJT can sink or source is 20mA per pin, with a total current limit of 100mA for the entire device.
  • To configure the TS4621MLEIJT for I2C or SMBus operation, connect the SCL pin to the clock signal, and the SDA pin to the data signal. Ensure that the pull-up resistors are connected to the correct voltage level (VCC or VDD) and that the bus capacitance is within the recommended range.
  • The reset pin (RST) on the TS4621MLEIJT is an active-low input that resets the device when pulled low. It is used to initialize the device or recover from a fault condition.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS4621MLEIJT Overview

Use the download button to access the TS4621MLEIJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS462, or try a keyword search, such as Audio/Video Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
