TS4990ID - STMicroelectronics

Description: Quadmm TS4990ID, Audio Amplifier Class-AB mono 1.5MHz +85°C 8-Pin SOIC

Download TS4990ID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

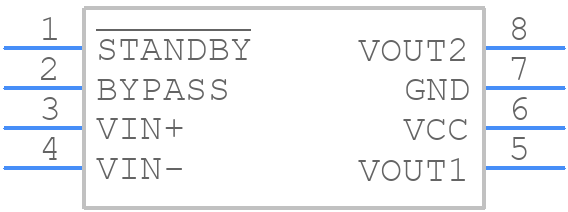

Symbol
TS4990ID - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS4990ID - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8_25
click to zoom
3D Models
TS4990ID - STMicroelectronics - 3D model - Small Outline Packages - SO-8_25
click to zoom

TS4990ID Details

  • Manufacturer Part Number:

    TS4990ID

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    1%

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TS4990ID Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2861, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • To optimize the TS4990ID for low power consumption, ensure that the device is operated within the recommended voltage range, use the lowest possible clock frequency, and enable the power-saving features such as the low-power mode and the shutdown mode. Additionally, optimize the external circuitry and reduce the load capacitance to minimize power consumption.
  • The TS4990ID is rated for operation from -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and the device's power dissipation. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
  • To troubleshoot issues with the TS4990ID, start by reviewing the datasheet and application notes to ensure that the device is properly configured and operated within the recommended specifications. Use oscilloscopes and logic analyzers to debug the device's signals and identify any anomalies. STMicroelectronics also provides a range of development tools and software that can aid in troubleshooting and debugging.
  • Yes, the TS4990ID is compatible with lead-free soldering. STMicroelectronics ensures that all its devices are RoHS-compliant and can be soldered using lead-free soldering processes. However, it's essential to follow the recommended soldering profiles and guidelines to ensure reliable assembly and operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS4990ID Overview

Use the download button to access the TS4990ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS499, or try a keyword search, such as Audio/Video Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
