Part Image

TS4990IDT - STMicroelectronics

Description: 1.2 W audio power amplifier with active-low standby mode

Download TS4990IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

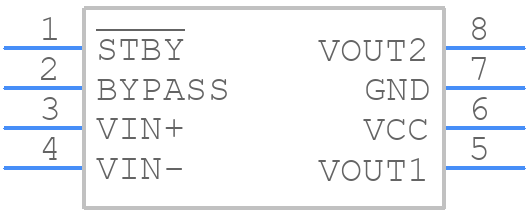

Symbol
TS4990IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS4990IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TS4990IDT
click to zoom
3D Models
TS4990IDT - STMicroelectronics - 3D model - Small Outline Packages - TS4990IDT
click to zoom

TS4990IDT Details

  • Manufacturer Part Number:

    TS4990IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.25

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    1%

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TS4990IDT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TS4990IDT involves keeping the input and output stages separate, using a star-ground configuration, and placing the device close to the power supply decoupling capacitors. Additionally, using a solid ground plane and minimizing track lengths can help reduce EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 10uF capacitance on the output is recommended. Also, avoid using long wires or tracks for the feedback loop.
  • The TS4990IDT can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and minimize power dissipation.
  • The TS4990IDT is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliable operation. Consult the datasheet for thermal derating guidelines.
  • The TS4990IDT has built-in overcurrent protection, but it's recommended to add external protection such as a fuse or a current-sensing resistor to detect overcurrent conditions. Additionally, ensure that the output is properly decoupled and the device is used within its recommended operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS4990IDT Overview

Use the download button to access the TS4990IDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS499, or try a keyword search, such as Audio/Video Amplifiers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
